DP83849IDVS - Texas Instruments

Description: Ethernet ICs PHYTER DUAL Industrial Temp with Fiber Support (FX), Dual Port 10/100 Mb/s Eth Phys Layer Transc 80-TQFP

Download DP83849IDVS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DP83849IDVS - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

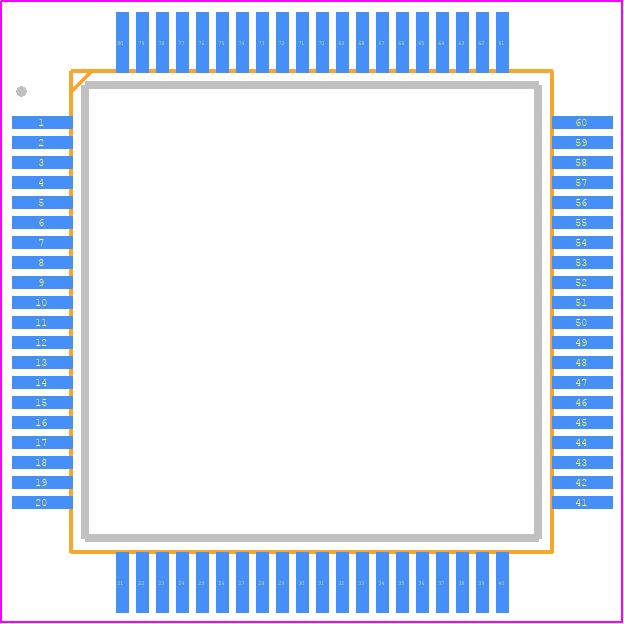

DP83849IDVS - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - NS Package Number VHB80A
click to zoom
3D Models
DP83849IDVS - Texas Instruments - 3D model - Quad Flat Packages - NS Package Number VHB80A
click to zoom

DP83849IDVS Details

  • Manufacturer Part Number:

    DP83849IDVS

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    12 X 12 MM, TQFP-80

  • Pin Count:

    80

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    12 mm

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Number of Transceivers:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP80,.55SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    12 mm

DP83849IDVS Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83849IDVS Evaluation Module User's Guide (SLAU575) and the DP83849IDVS Layout Guide (SLAU576). These guides provide detailed information on component placement, routing, and thermal management to ensure optimal performance.
  • The DP83849IDVS can be configured using the TI's PHY Utility software, which provides a graphical user interface to configure the device's registers and settings. The software is available for download on the TI website.
  • The DP83849IDVS supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application, cable quality, and environmental conditions.
  • Texas Instruments provides a troubleshooting guide for the DP83849IDVS in the device's datasheet and application notes. Additionally, TI's support team can be contacted for further assistance. It's also recommended to use the PHY Utility software to monitor the device's status and debug any issues.
  • Yes, the DP83849IDVS is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.
