DP83865DVH/NOPB - Texas Instruments

Description: Gig PHYTER V 10/100/1000 Ethernet Physical Layer

Download DP83865DVH/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DP83865DVH/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

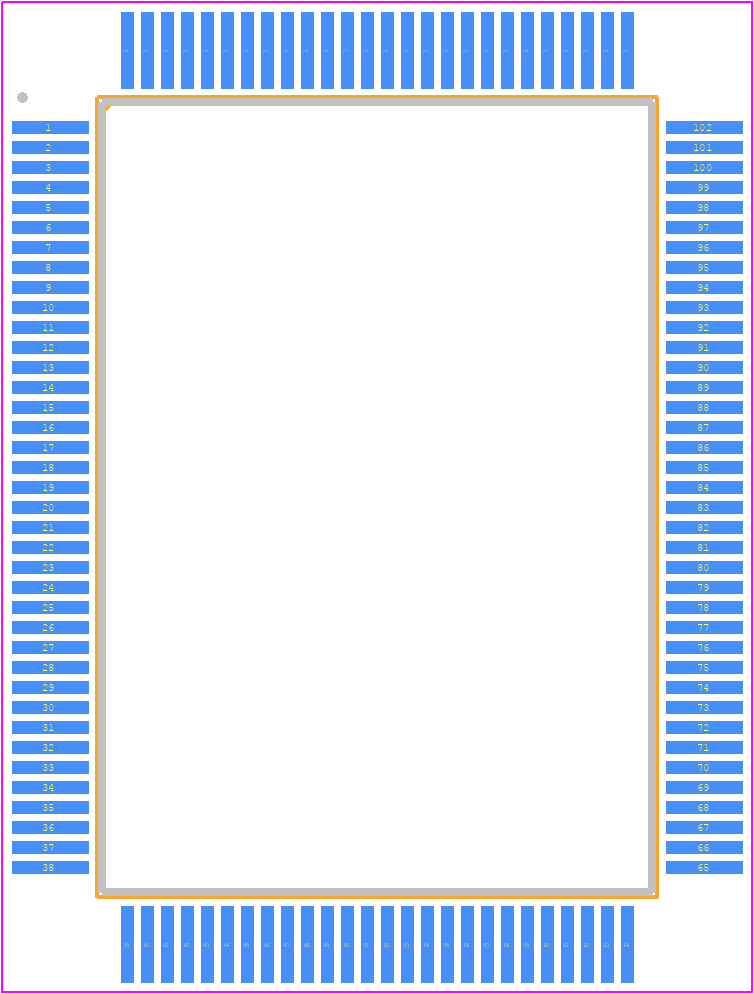

DP83865DVH/NOPB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - VLA128A
click to zoom
3D Models
DP83865DVH/NOPB - Texas Instruments - 3D model - Quad Flat Packages - VLA128A
click to zoom

DP83865DVH/NOPB Details

  • Manufacturer Part Number:

    DP83865DVH/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    QFP-128

  • Pin Count:

    128

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP128,.67X.93,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, FINE PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.15 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

DP83865DVH/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application note (SLVA466) for optimal performance.
  • The DP83865DVH/NOPB is a highly configurable device. Refer to the 'DP83865 Ethernet PHY Configuration and Register Programming Guide' (SLAU522) for detailed information on configuring the device for specific network applications.
  • The power-up and power-down sequencing requirements are critical for the DP83865DVH/NOPB. Refer to the 'Power-Up and Power-Down Sequencing' section in the datasheet for specific guidelines.
  • Texas Instruments provides a 'DP83865 Troubleshooting Guide' (SLAU523) that provides step-by-step guidance on troubleshooting common issues with the device.
  • The DP83865DVH/NOPB has specific thermal management requirements. Refer to the 'Thermal Considerations' section in the datasheet for guidelines on thermal design and layout.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83865DVH/NOPB Overview

Use the download button to access the DP83865DVH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces
