DP83867CRRGZR - Texas Instruments

Description: Low-power, robust gigabit Ethernet PHY transceiver in a small QFN package

Download DP83867CRRGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

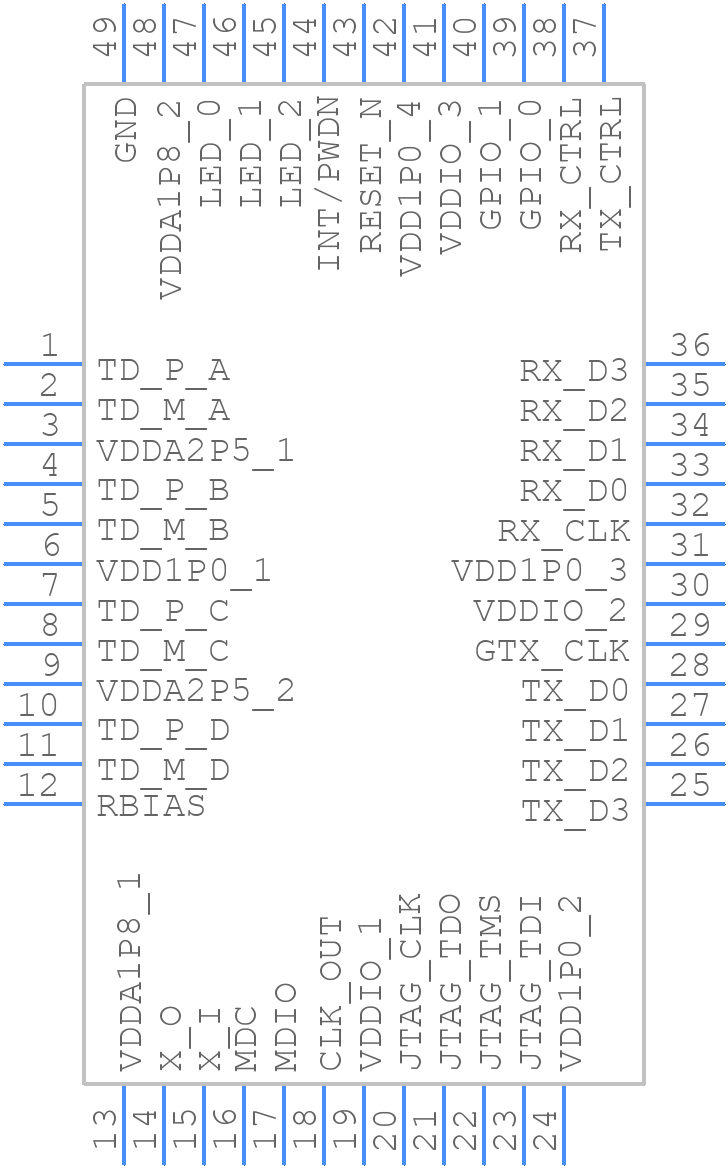

DP83867CRRGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83867CRRGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B 2021
click to zoom
3D Models
DP83867CRRGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B 2021
click to zoom

DP83867CRRGZR Details

  • Manufacturer Part Number:

    DP83867CRRGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83867CRRGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83867CRRGZR evaluation module (EVM) design files, which can be downloaded from the TI website. The EVM design files include a detailed layout guide and Gerber files to help ensure optimal performance.
  • The DP83867CRRGZR can be configured using the TI PHY Utility software, which provides a graphical user interface for configuring the device's registers and settings. The software is available for download on the TI website.
  • The DP83867CRRGZR requires a specific power-up and power-down sequencing to ensure proper operation. The recommended sequencing is outlined in the datasheet, and involves powering up the device in a specific order (VCC, then VCCA, then VCCIO) and powering down in the reverse order.
  • TI provides a troubleshooting guide for the DP83867CRRGZR, which covers common issues and their solutions. The guide is available on the TI website, and includes information on debugging tools and techniques.
  • The DP83867CRRGZR has a maximum junction temperature of 125°C, and requires proper thermal management to ensure reliable operation. TI recommends using a heat sink or thermal pad to dissipate heat, and provides thermal design guidelines in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83867CRRGZR Overview

Use the download button to access the DP83867CRRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
