DP83867IRRGZT - Texas Instruments

Description: Gigabit Ethernet PHY Customized for Harsh Industrial Environments

Download DP83867IRRGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

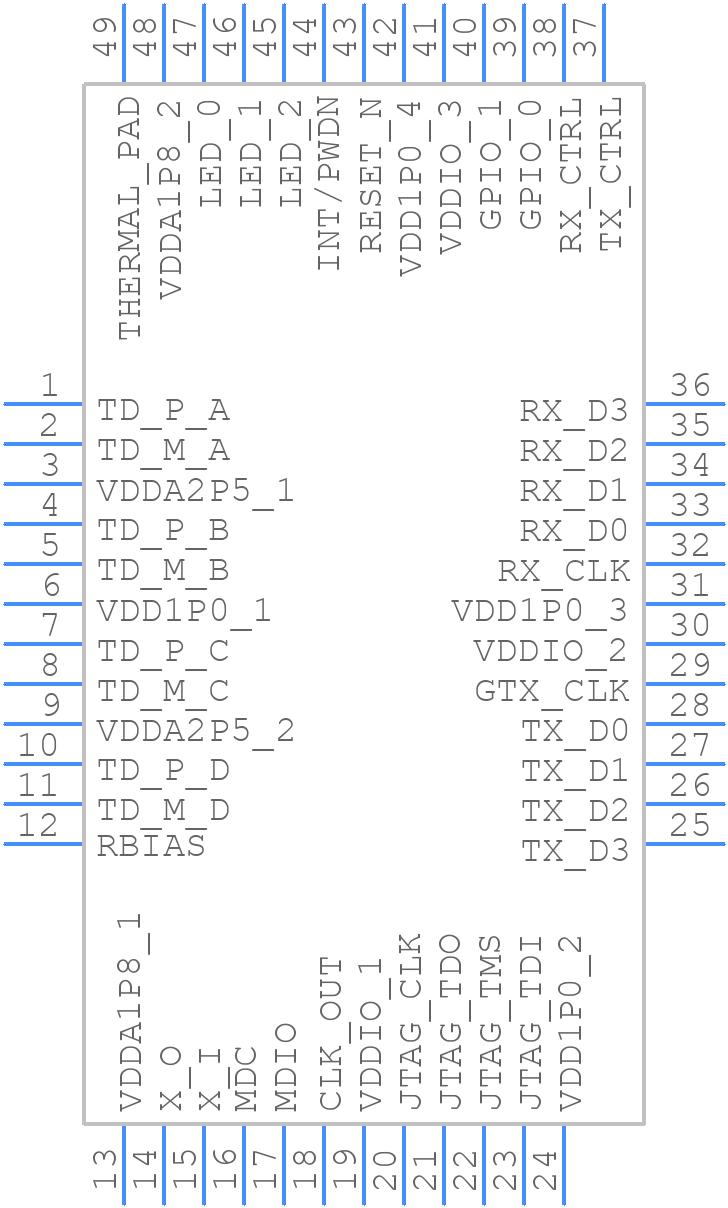

Symbol
DP83867IRRGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83867IRRGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ (S-PVQFN-N48)_4.08TP
click to zoom
3D Models
DP83867IRRGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ (S-PVQFN-N48)_4.08TP
click to zoom

DP83867IRRGZT Details

  • Manufacturer Part Number:

    DP83867IRRGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83867IRRGZT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83867IRRGZT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The DP83867IRRGZT can be configured using the TI's PHY Utility software, which provides a graphical user interface for configuring the device's registers and settings. The software is available for download on the TI website.
  • The DP83867IRRGZT supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application and environmental conditions.
  • Texas Instruments provides a troubleshooting guide for the DP83867IRRGZT, which includes steps for identifying and resolving common issues, such as link faults, packet loss, and PHY register configuration errors.
  • Yes, the DP83867IRRGZT is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.
