Texas Instruments provides a recommended PCB layout in the DP83869HMRGZR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
The DP83869HMRGZR can be configured using the TI's PHY Utility software, which provides a graphical user interface to configure and monitor the device's settings, such as link speed, duplex mode, and flow control.
The DP83869HMRGZR has a typical power consumption of 350 mW in 1000BASE-T mode and 200 mW in 10/100BASE-TX mode. The device also has a thermal shutdown feature that protects it from overheating, with a junction temperature range of -40°C to 125°C.
Texas Instruments provides a troubleshooting guide for the DP83869HMRGZR, which includes steps to identify and resolve common issues, such as link faults, packet loss, and PHY register configuration errors.
Yes, the DP83869HMRGZR is rated for industrial temperature ranges, with an operating temperature range of -40°C to 85°C, making it suitable for use in industrial Ethernet applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DP83869HMRGZR Overview

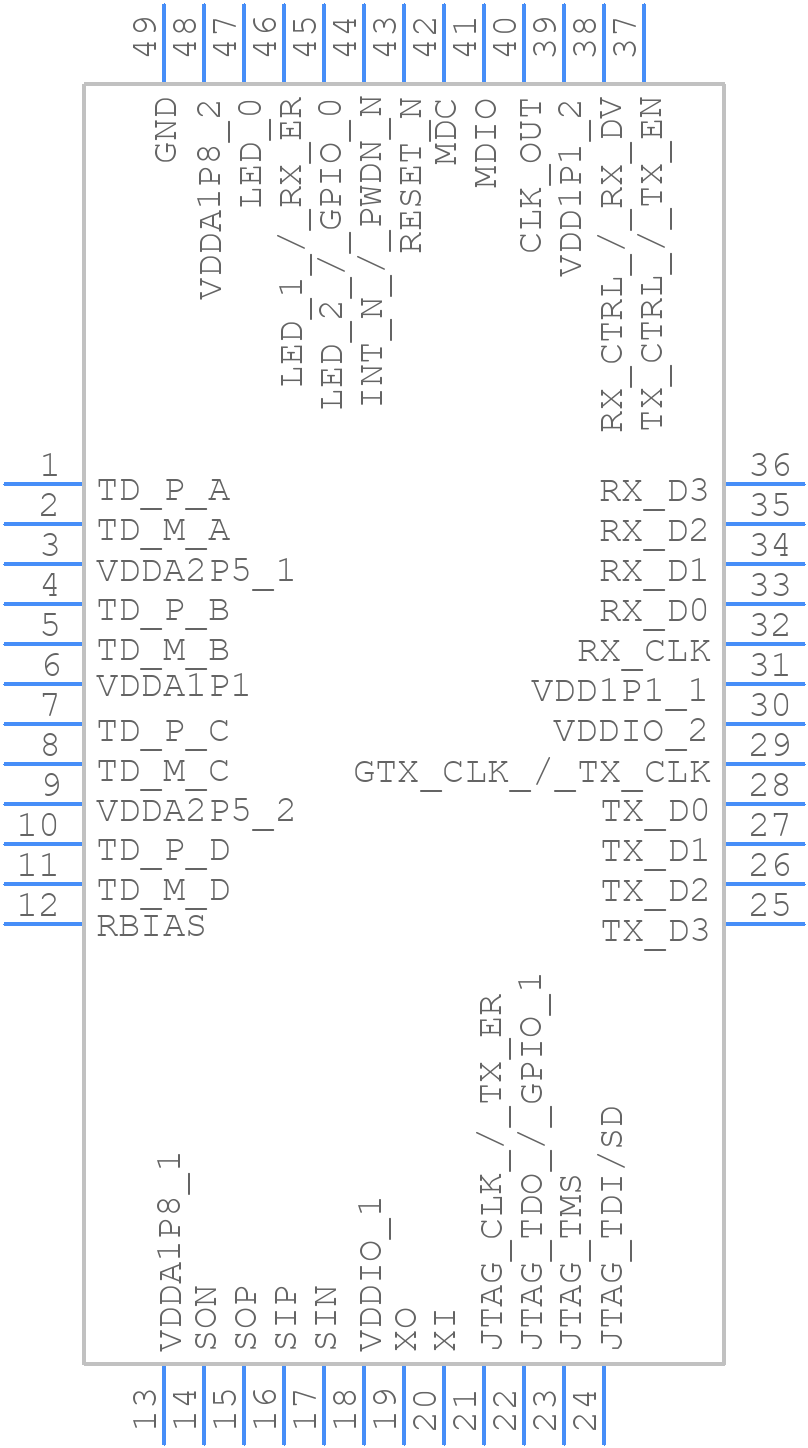

Use the download button to access the DP83869HMRGZR schematic symbol, PCB footprint, and 3D model.
