Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure signal integrity.
The DP83TD510ERHBR is a highly configurable device. Engineers can use the TI's Webench tool or the DP83TD510ERHBR evaluation module to configure the device for their specific application. The datasheet also provides guidance on configuring the device for different use cases.
The DP83TD510ERHBR has a maximum junction temperature of 150°C. Engineers should ensure good thermal design practices, such as providing adequate heat sinking, using thermal vias, and minimizing thermal resistance to prevent overheating.
Texas Instruments provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Engineers can also use TI's support resources, such as the E2E forum, to get help from experts and other users.
The DP83TD510ERHBR is designed to meet EMI and EMC standards. Engineers should follow good design practices, such as using shielding, filtering, and grounding, to minimize electromagnetic interference and ensure compliance with regulatory standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DP83TD510ERHBR Overview

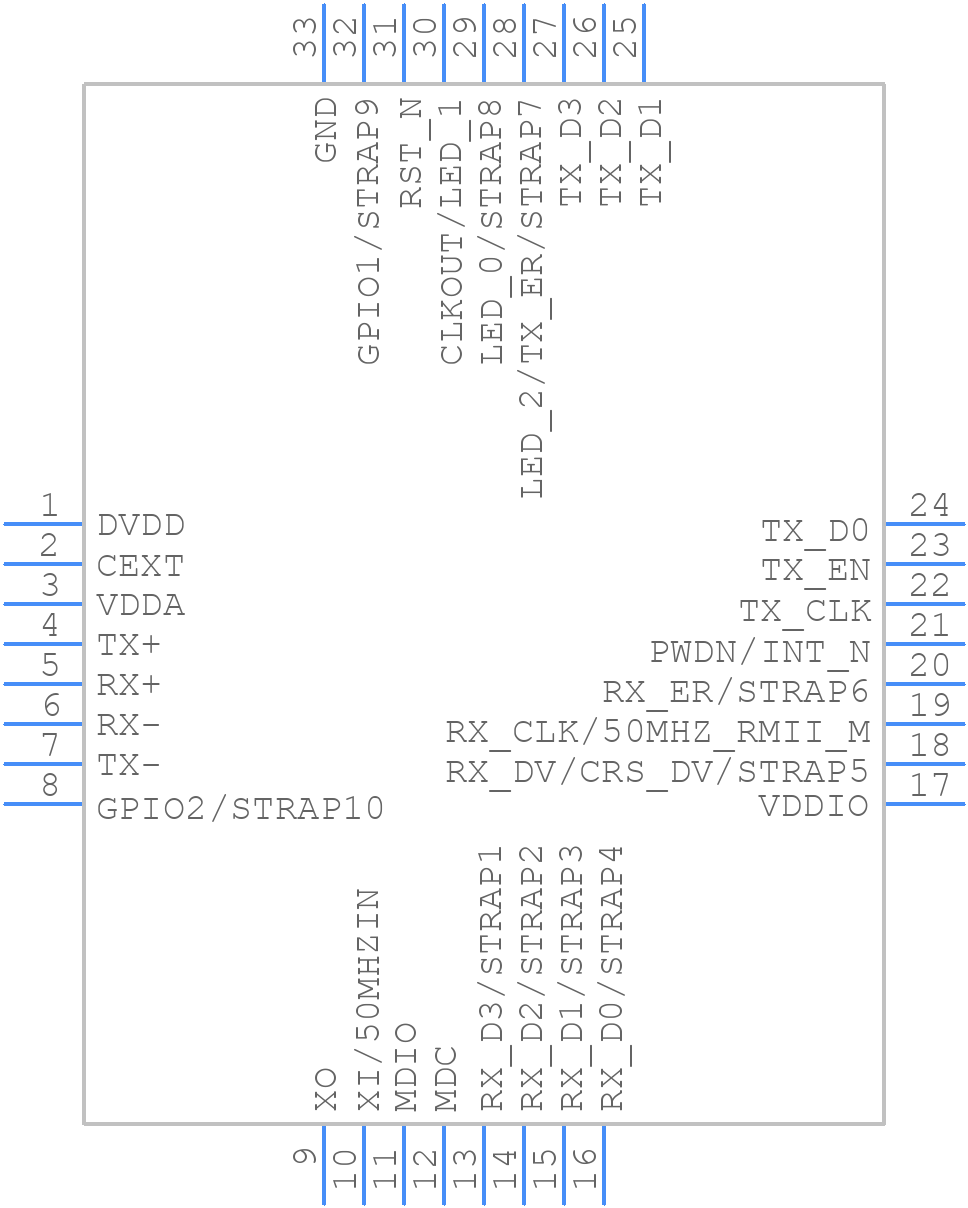

Use the download button to access the DP83TD510ERHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP83T,
or try a keyword search, such as Network Interfaces
