Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DRA-09P11
- Part Number DRA-09P11
- Manufacturer Yamaichi
- Pin Count 11
- Part Category Connector
- Package Category Other

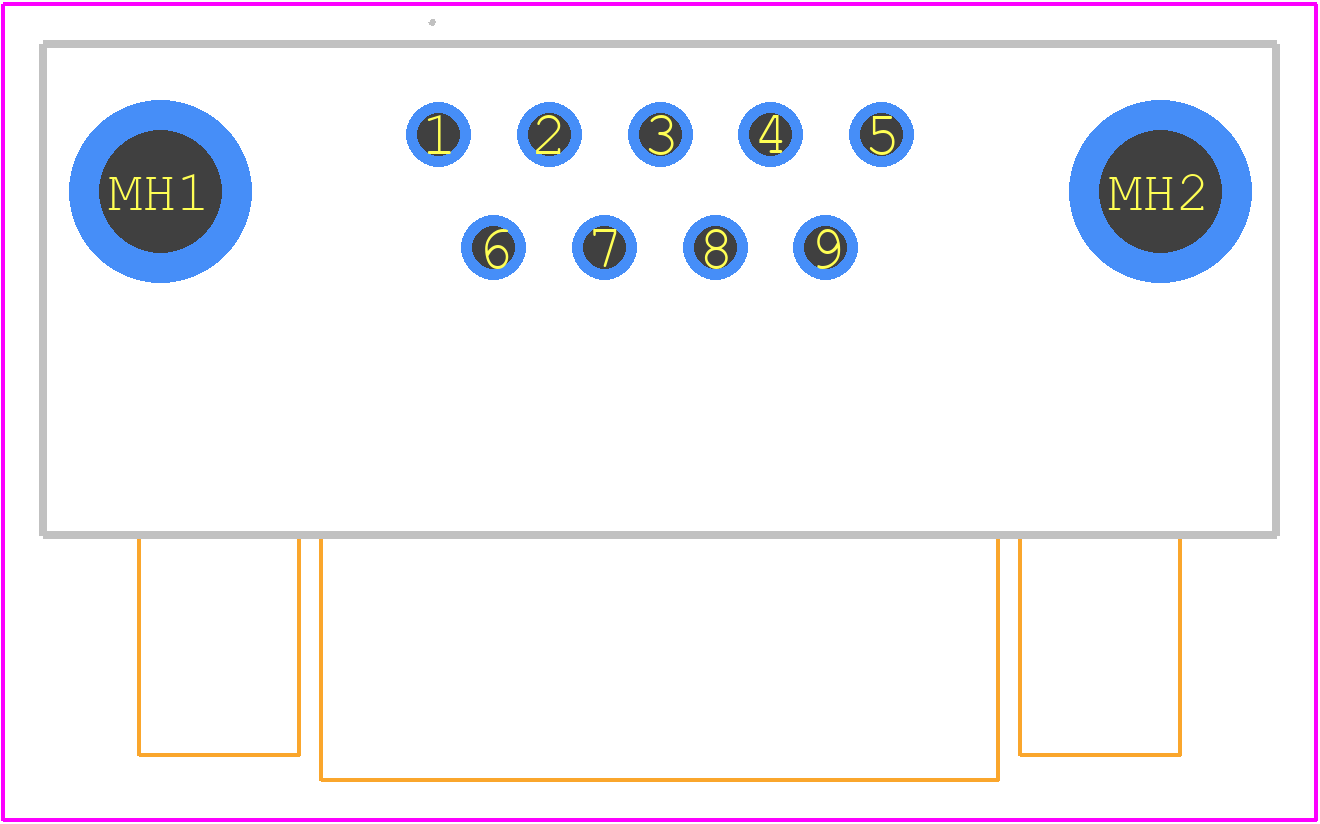

- Footprint Name Other - DRA-09P11-1
- Released Date Sep 6, 2021
- Last Modified Date Jan 6, 2024 6:28 AM UTC
- Pinout / Pin List Click Here (Member Only)
DRA-09P11 Details
-
Manufacturer Part Number:
DRA-09P11
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Yamaichi Electronics Co Ltd
-
Connector Type:
D SUBMINIATURE CONNECTOR
-
Option:
GENERAL PURPOSE
Trust Checks
Expert Contribution
System Verified
Community Approved
DRA-09P11 Overview
Use the download button to access the DRA-09P11 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DRA-0,
or try a keyword search, such as D Type Connectors
