Texas Instruments provides a recommended PCB layout in the DRA821U4TGBALM Evaluation Module User's Guide (SLAU685). It's essential to follow the guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To minimize power consumption, configure the device to use the lowest possible voltage and frequency for your application. Use the Power Management IC (PMIC) to dynamically adjust voltage and frequency based on system requirements. Additionally, enable power-saving features like CPU idle and low-power modes.
The DRA821U4TGBALM has an operating temperature range of -40°C to 105°C. However, it's essential to ensure proper thermal design and cooling to maintain a safe operating temperature, especially in high-performance applications.
To ensure reliable booting, follow the recommended boot sequence and configuration guidelines in the datasheet. Use a reliable power source, and ensure that the boot pins are properly configured. Additionally, implement a robust boot loader and error handling mechanism to prevent boot failures.
Texas Instruments recommends using high-quality, low-ESR decoupling capacitors with a value of 10uF to 22uF, and a voltage rating of 1.8V to 3.3V. Place the capacitors as close as possible to the device's power pins to minimize noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRA821U4TGBALM Overview

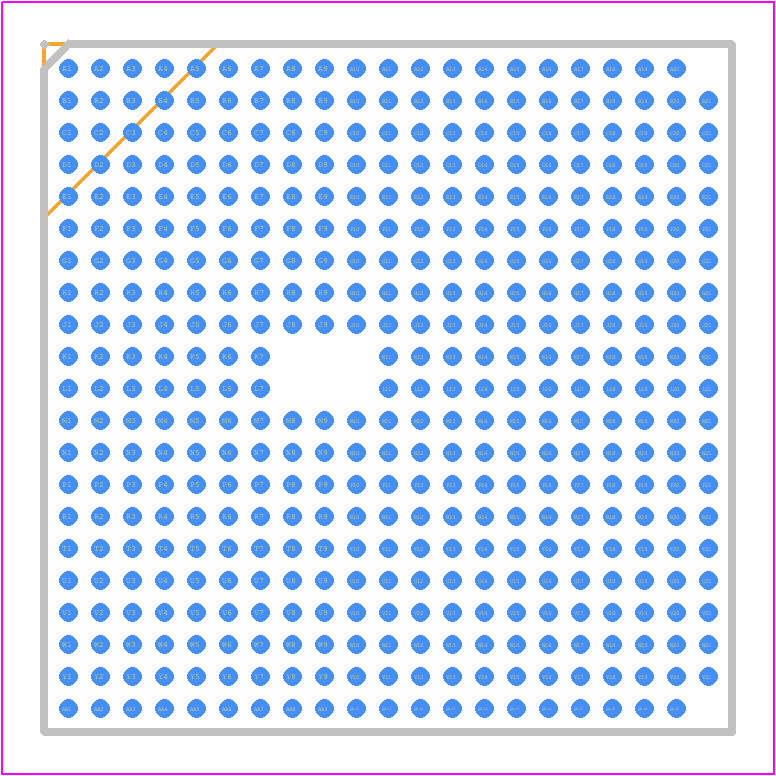

Use the download button to access the DRA821U4TGBALM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRA82,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
