DRV10866DSCR - Texas Instruments

Description: 5-V, 3-Phase, Sensorless, Brushless DC Motor Driver

Download DRV10866DSCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

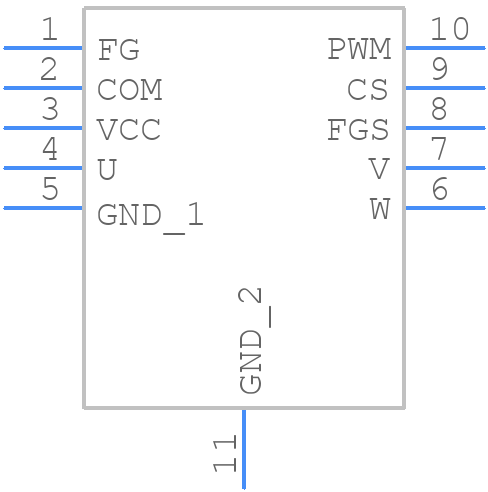

DRV10866DSCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV10866DSCR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON_10
click to zoom
3D Models
DRV10866DSCR - Texas Instruments - 3D model - Small Outline No-lead - WSON_10
click to zoom

DRV10866DSCR Details

  • Manufacturer Part Number:

    DRV10866DSCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.85 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DRV10866DSCR Frequently Asked Questions (FAQs)

  • A good PCB layout for the DRV10866DSCR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
  • Choose input capacitors with low ESR and high ripple current rating. For output capacitors, choose ones with low ESR and high capacitance. The datasheet provides guidelines for capacitor selection, and TI's capacitor selection tool can also be used.
  • The maximum ambient temperature for the DRV10866DSCR is 85°C. However, the device can operate at higher temperatures with derating. Refer to the datasheet for thermal derating curves.
  • Use a voltage supervisor or a voltage monitor IC to detect overvoltage and undervoltage conditions. You can also use a voltage clamp or a TVS diode to protect the device from voltage transients.
  • Yes, the DRV10866DSCR is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured in a facility certified to IATF 16949.
