DRV10963JJDSNR - Texas Instruments

Description: 5-V, 3-Phase Sinusoidal Sensorless BLDC Motor Driver

Download DRV10963JJDSNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

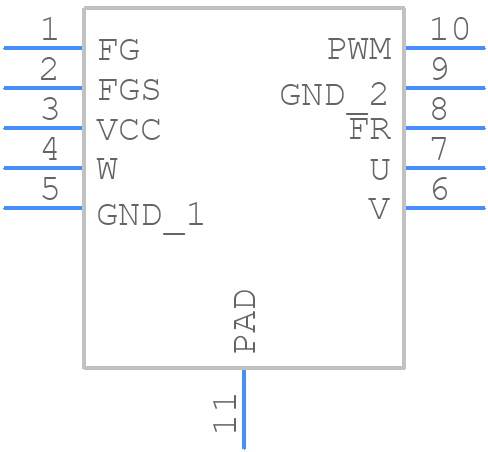

DRV10963JJDSNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV10963JJDSNR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV10963JJDSNR
click to zoom
3D Models
DRV10963JJDSNR - Texas Instruments - 3D model - Small Outline No-lead - DRV10963JJDSNR
click to zoom

DRV10963JJDSNR Details

  • Manufacturer Part Number:

    DRV10963JJDSNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DRV10963JJDSNR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV10963JJDSNR datasheet, but it's also recommended to follow the guidelines in the 'DRV10963JJDSNR PCB Layout Guidelines' application note (SLVAE67). This note provides detailed information on how to optimize the PCB layout for the device.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A smaller sense resistor value provides better current sense accuracy but increases the power loss in the resistor. A larger sense resistor value reduces power loss but decreases current sense accuracy. Texas Instruments provides a sense resistor calculation tool to help with this selection.
  • The DRV10963JJDSNR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
  • The DRV10963JJDSNR has a built-in overcurrent protection feature that can be enabled by setting the OCP pin high. The device will shut down if the motor current exceeds the programmed overcurrent threshold. The threshold can be set using an external resistor divider connected to the OCP pin.
  • No, the DRV10963JJDSNR is designed for use with brushed DC motors only. It does not have the necessary circuitry to support brushless DC motor control. For brushless DC motor control, consider using a dedicated brushless DC motor driver IC, such as the DRV8313 or DRV8305.
