SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
7 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
6.5 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
DRV10975PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the DRV10975PWP datasheet (SLVSBJ5) and in the DRV10975PWP Evaluation Module User's Guide (SLVUAE5). It's essential to follow these guidelines to ensure proper thermal performance, noise reduction, and signal integrity.
The sense resistor (Rs) value depends on the motor current, desired current sense accuracy, and the voltage across the sense resistor. TI provides a calculation for Rs in the datasheet (equation 14). A general rule of thumb is to choose an Rs value that results in a voltage drop of 50-100 mV at the maximum motor current.
The VREG pin is an internal voltage regulator output that can be used to power external circuitry. It's recommended to use a capacitor (e.g., 1 μF) to filter the output voltage. The VREG pin can be used to power low-current devices, such as sensors or microcontrollers, but it's not suitable for high-current applications.
The DRV10975PWP has a built-in OCP feature that can be enabled by connecting the OCP pin to a resistor (Rocp) and a capacitor (Cocp) to ground. The OCP threshold is set by the Rocp value. TI provides a calculation for Rocp in the datasheet (equation 16). When an overcurrent event occurs, the OCP pin goes low, and the device enters a fault state.
The DRV10975PWP and DRV10983PWP are both three-phase brushless DC motor drivers, but they have different current ratings and package types. The DRV10975PWP has a higher current rating (2.5 A) and is available in a 28-pin HTSSOP package, while the DRV10983PWP has a lower current rating (1.5 A) and is available in a 24-pin QFN package.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV10975PWP Overview

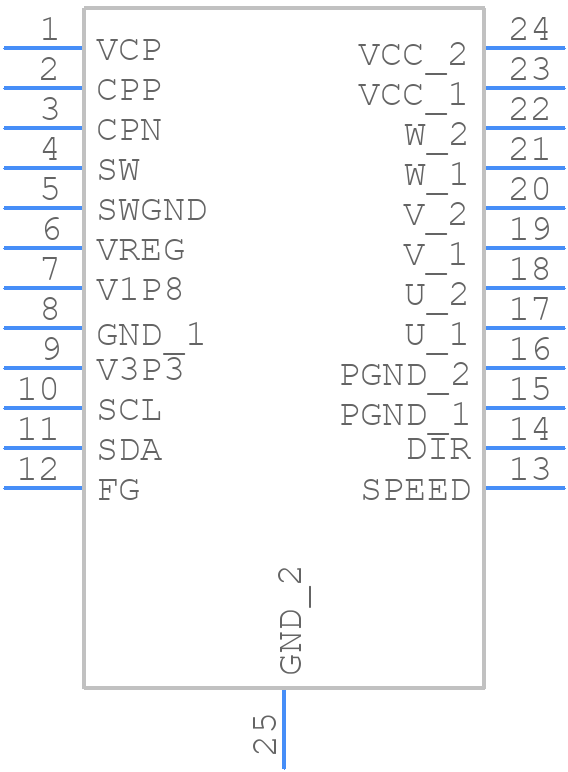

Use the download button to access the DRV10975PWP schematic symbol, PCB footprint, and 3D model.
