DRV10975RHFR - Texas Instruments

Description: 25W, 12v 3-phase sensorless BLDC motor driver

Download DRV10975RHFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

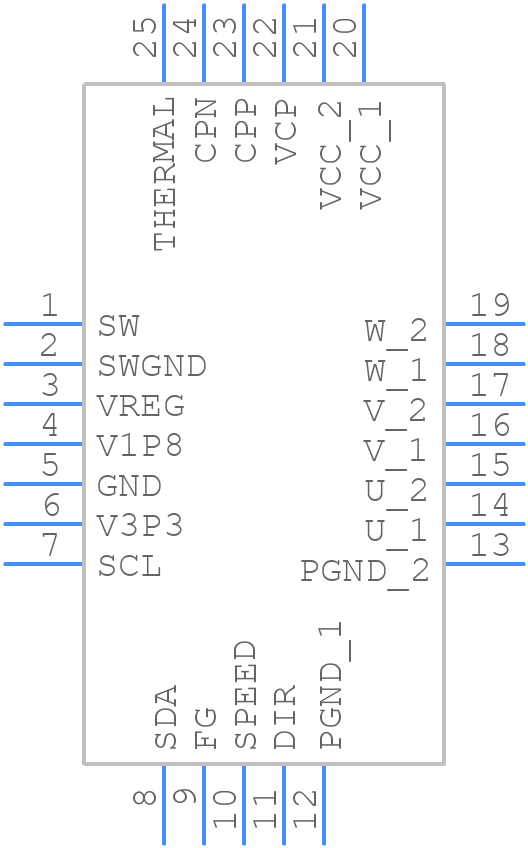

DRV10975RHFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV10975RHFR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHF (R-PVQFN-N24)
click to zoom
3D Models
DRV10975RHFR - Texas Instruments - 3D model - Quad Flat No-Lead - RHF (R-PVQFN-N24)
click to zoom

DRV10975RHFR Details

  • Manufacturer Part Number:

    DRV10975RHFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-04-04

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV10975RHFR Frequently Asked Questions (FAQs)

  • A good PCB layout for the DRV10975RHFR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the motor. TI provides a recommended PCB layout in the datasheet and application notes.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A smaller sense resistor value provides better accuracy but increases the power loss. TI provides a sense resistor calculation formula in the datasheet.
  • The internal bootstrap diode is used to generate the high-side gate drive voltage. It eliminates the need for an external bootstrap diode and reduces the component count. However, it may affect the design by limiting the maximum voltage rating and requiring a specific layout to minimize parasitic inductance.
  • The DRV10975RHFR has a built-in overcurrent protection feature that can be configured using the OCx pins. The device also provides fault detection and reporting through the nFAULT pin. Engineers can use these features to implement a robust fault-handling mechanism in their design.
  • The DRV10975RHFR has a maximum junction temperature rating of 150°C. Engineers should ensure good thermal design practices, such as using a heat sink, minimizing thermal resistance, and providing adequate airflow to prevent overheating and ensure reliable operation.
