DRV10975ZPWPR - Texas Instruments

Description: 12-V, 3-Phase, Sensorless BLDC Motor Controller

Download DRV10975ZPWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

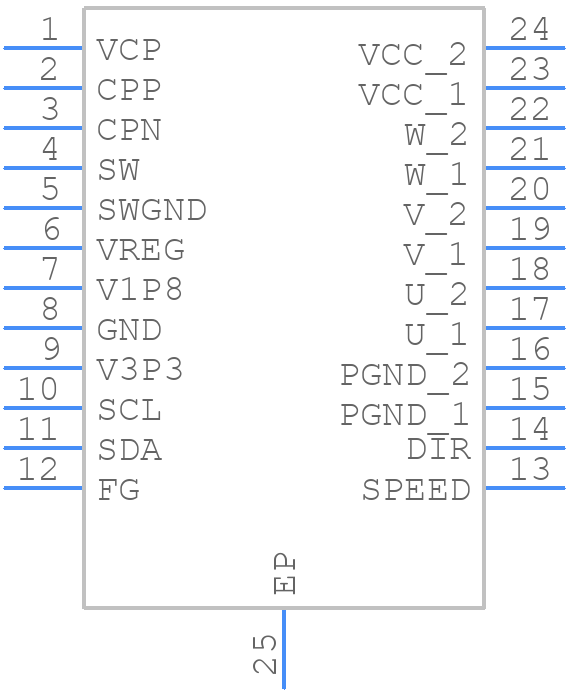

DRV10975ZPWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV10975ZPWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G24)_2
click to zoom
3D Models
DRV10975ZPWPR - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G24)_2
click to zoom

DRV10975ZPWPR Details

  • Manufacturer Part Number:

    DRV10975ZPWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV10975ZPWPR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV10975ZPWPR datasheet (section 10.2) and in the application note 'DRV10975ZPWPR PCB Layout Guidelines' (SLUAUH5). It's essential to follow these guidelines to minimize EMI and noise.
  • The sense resistor (Rs) value depends on the motor current and the desired current sense accuracy. Texas Instruments provides a formula to calculate Rs in the datasheet (section 7.3.1). A general rule of thumb is to choose Rs = 0.1 Ω to 1 Ω, and then adjust based on the specific application requirements.
  • The VREG pin is an internal voltage regulator output that can be used to power external components. It's recommended to connect a 1-μF capacitor between VREG and GND to filter the output voltage. The VREG pin can be used to power low-current devices, such as sensors or logic circuits.
  • The DRV10975ZPWPR has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) to the IS pin, and set the OCP threshold using the OTP pin. The device will automatically shut down if the current exceeds the set threshold. Refer to the datasheet (section 7.3.2) for more details.
  • The DRV10975ZPWPR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation in the application.
