DRV10983PWP - Texas Instruments

Description: TEXAS INSTRUMENTS - DRV10983PWP - Motor Driver/Controller, Three Phase DC Brushless, 8V to 28V supply, 24V/2 A/3 Outputs, HTSSOP-24

Download DRV10983PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

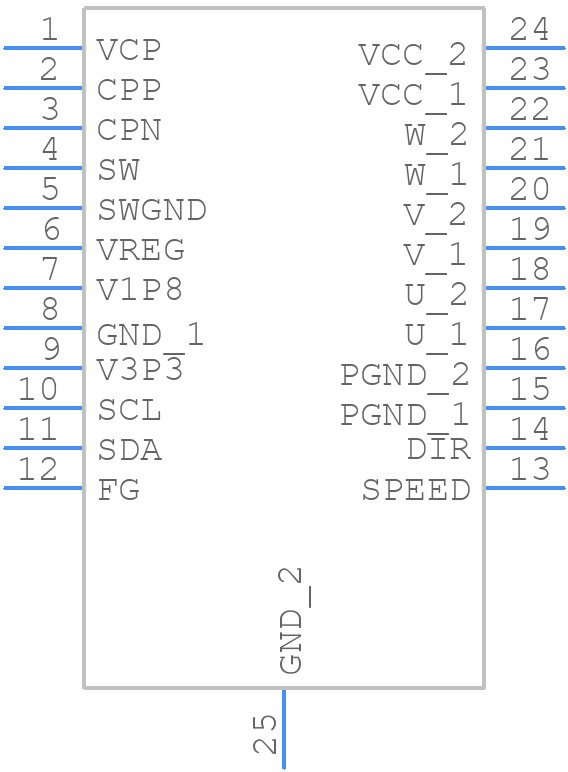

DRV10983PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV10983PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0024B_2021
click to zoom
3D Models
DRV10983PWP - Texas Instruments - 3D model - Small Outline Packages - PWP0024B_2021
click to zoom

DRV10983PWP Details

  • Manufacturer Part Number:

    DRV10983PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV10983PWP Frequently Asked Questions (FAQs)

  • A good PCB layout for the DRV10983PWP involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the motor. TI provides a recommended PCB layout in the application note SLVA883.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A good starting point is to choose a sense resistor value that sets the current sense voltage to around 100-200 mV at the maximum motor current. TI provides a sense resistor calculator tool to help with this.
  • The DRV10983PWP can handle up to 2.5 A of motor current, but this depends on the ambient temperature, PCB layout, and thermal design. It's essential to follow the thermal design guidelines in the datasheet to ensure reliable operation.
  • The DRV10983PWP has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by adjusting the resistor values. TI provides an application note (SLVA884) that explains how to implement overcurrent protection.
  • No, the DRV10983PWP is designed for brushed DC motors only. It does not have the necessary commutation logic for brushless DC motors. For brushless DC motor control, consider using a dedicated brushless DC motor driver IC like the DRV8313.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV10983PWP Overview

Use the download button to access the DRV10983PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV10, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
