DRV10983PWPR - Texas Instruments

Description: 24-V, 3-Phase Sensorless BLDC Motor Controller

Download DRV10983PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

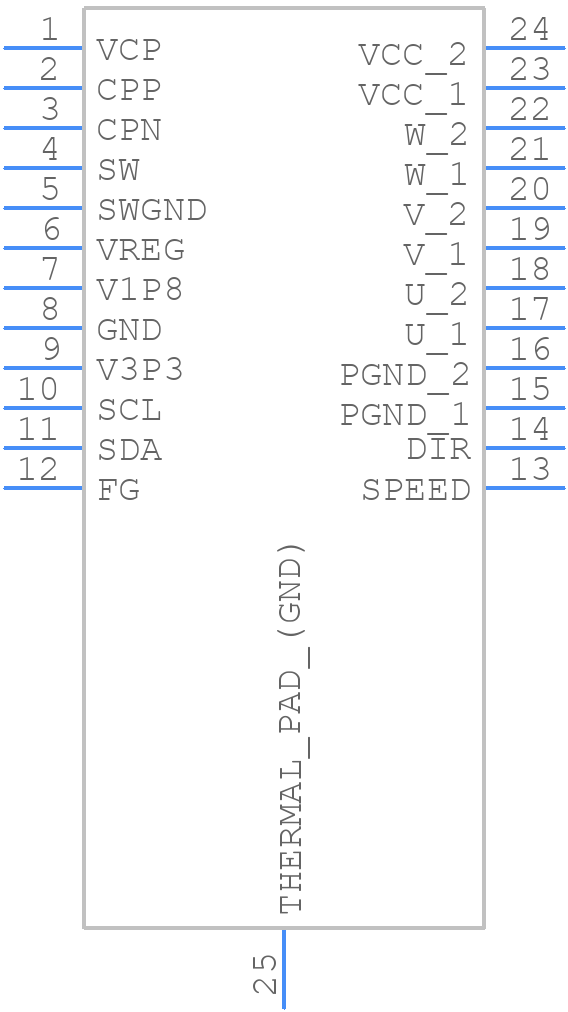

DRV10983PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV10983PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP (24)
click to zoom
3D Models
DRV10983PWPR - Texas Instruments - 3D model - Small Outline Packages - HTSSOP (24)
click to zoom

DRV10983PWPR Details

  • Manufacturer Part Number:

    DRV10983PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV10983PWPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the DRV10983PWPR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the motor. TI provides a recommended PCB layout in the datasheet and application notes.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A smaller sense resistor value provides better accuracy but increases the power loss. TI provides a sense resistor calculation tool to help with the selection.
  • The DRV10983PWPR has a maximum operating temperature of 150°C (302°F). However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • No, the DRV10983PWPR is designed for brushed DC motors only. It does not have the necessary commutation logic for brushless DC motors. TI offers other devices, such as the DRV8301, that are specifically designed for brushless DC motor control.
  • The DRV10983PWPR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The device will shut down if the current exceeds the set threshold. TI provides more information on implementing overcurrent protection in the datasheet and application notes.
