SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
28 V
Supply Voltage-Min (Vsup):
6.2 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
DRV10983QPWPRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the DRV10983QPWPRQ1 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
The DRV10983QPWPRQ1 datasheet provides a basic motor control algorithm, but optimization requires consideration of motor parameters, load conditions, and system requirements. TI provides a motor control library and application notes to help with optimization.
The DRV10983QPWPRQ1 has a high power density, so thermal management is crucial. Ensure good airflow, use thermal vias, and consider heat sinks or thermal interfaces to keep the device within the recommended operating temperature range.
Use the DRV10983QPWPRQ1 EVM user's guide and application notes to troubleshoot issues. Check for proper PCB layout, component selection, and motor configuration. Use oscilloscopes and logic analyzers to debug signal integrity and timing issues.
The DRV10983QPWPRQ1 is designed to meet EMI and EMC standards, but proper PCB layout, shielding, and filtering are still necessary to minimize emissions and ensure immunity. Follow TI's EMI and EMC guidelines and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV10983QPWPRQ1 Overview

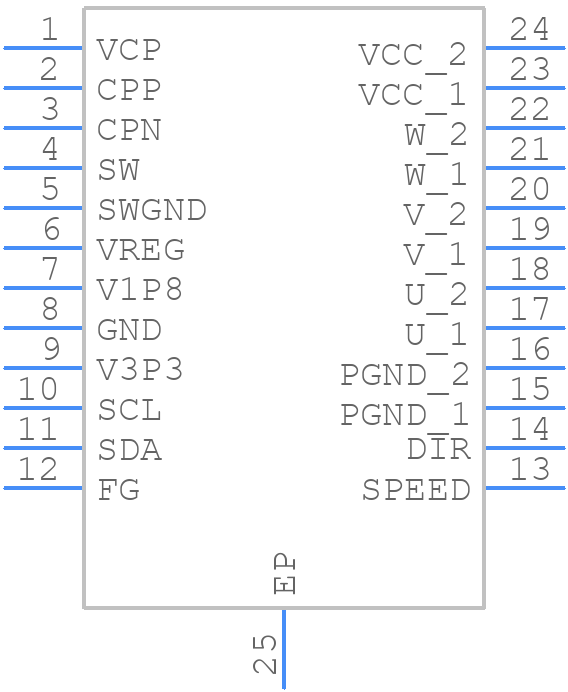

Use the download button to access the DRV10983QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV10,
or try a keyword search, such as Motion Control Electronics
