DRV10983ZPWP - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers 24-V3-Phase Sensorle BLDC Motor Controler

Download DRV10983ZPWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

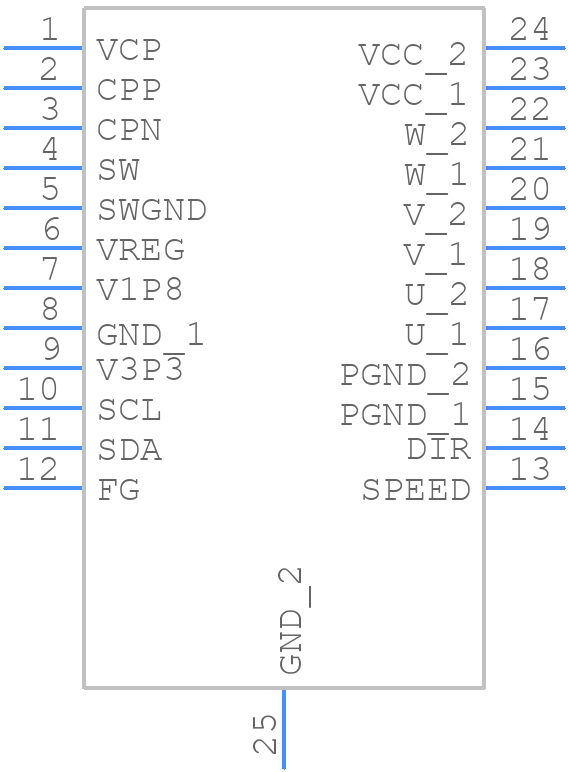

DRV10983ZPWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV10983ZPWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G24)-
click to zoom
3D Models
DRV10983ZPWP - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G24)-
click to zoom

DRV10983ZPWP Details

  • Manufacturer Part Number:

    DRV10983ZPWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV10983ZPWP Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV10983ZPWP evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A smaller sense resistor value provides higher accuracy but increases the power loss, while a larger value reduces power loss but decreases accuracy. TI provides a sense resistor calculator tool to help with the selection.
  • The DRV10983ZPWP is rated for operation from -40°C to 125°C, but the actual operating temperature range may be limited by the specific application and the thermal management design. It's essential to ensure proper heat sinking and thermal design to maintain a safe operating temperature.
  • The DRV10983ZPWP has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by selecting the appropriate resistor values. TI provides a detailed example in the datasheet and application notes.
  • Yes, the DRV10983ZPWP is designed to drive three-phase brushless DC (BLDC) motors. However, it's essential to ensure that the motor is properly configured and commutated using an external controller or MCU, as the DRV10983ZPWP only provides the power stage and current sensing functionality.
