DRV10983ZPWPR - Texas Instruments

Description: 24-V, 3-Phase Sensorless BLDC Motor Controller

Download DRV10983ZPWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

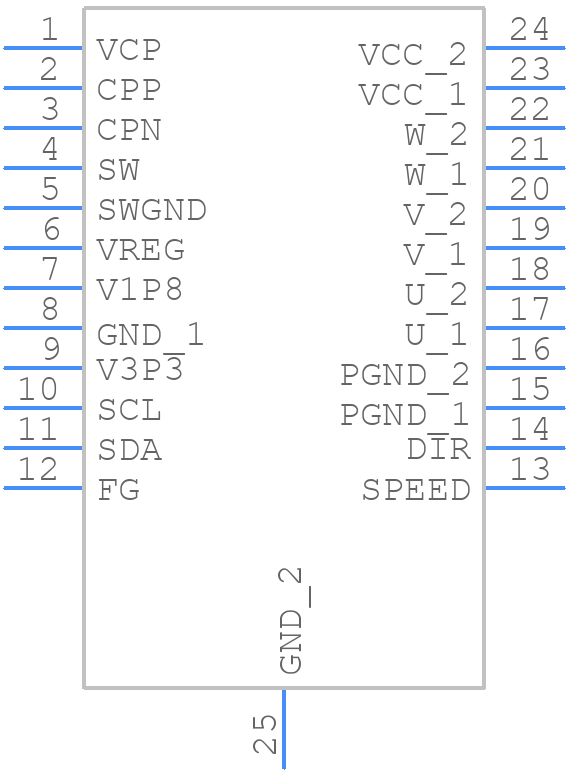

Symbol
DRV10983ZPWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV10983ZPWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DRV10983ZPWPR-1
click to zoom
3D Models
DRV10983ZPWPR - Texas Instruments - 3D model - Small Outline Packages - DRV10983ZPWPR-1
click to zoom

DRV10983ZPWPR Details

  • Manufacturer Part Number:

    DRV10983ZPWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV10983ZPWPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the DRV10983ZPWPR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the motor. TI provides a recommended PCB layout in the datasheet and application notes.
  • The sense resistor (Rs) should be chosen based on the motor current and the desired current sense accuracy. A smaller Rs value provides better accuracy but increases power loss, while a larger Rs value reduces power loss but decreases accuracy. TI provides a calculation for Rs in the datasheet.
  • The DRV10983ZPWPR has a maximum operating temperature of 150°C (TJ). However, the device can be operated at a higher temperature with derating. TI provides a thermal derating curve in the datasheet.
  • The DRV10983ZPWPR has built-in overvoltage protection (OVP) and undervoltage protection (UVP). However, additional protection can be added using external components such as TVS diodes or voltage regulators to protect the device from voltage transients and spikes.
  • A decoupling capacitor with a value of 10uF to 22uF is recommended to filter the supply voltage and reduce noise. The capacitor should be placed close to the device and have a low ESR.
