SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
28 V
Supply Voltage-Min (Vsup):
6.2 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
DRV10987DPWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the DRV10987DPWPR datasheet, which includes guidelines for component placement, routing, and thermal management. It is essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and frequency. Texas Instruments provides a list of recommended inductors in the datasheet, and engineers can also use the inductor selection tool on the TI website to find a suitable inductor.
The DRV10987DPWPR has an operating junction temperature range of -40°C to 150°C, and the maximum ambient temperature depends on the specific application and thermal design. Engineers should ensure that the device is properly cooled and that the thermal design meets the requirements specified in the datasheet.
The DRV10987DPWPR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and the calculation of the OCP threshold voltage.
Yes, the DRV10987DPWPR is designed for high-reliability applications, such as automotive and industrial systems. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for industrial and medical applications that require high reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV10987DPWPR Overview

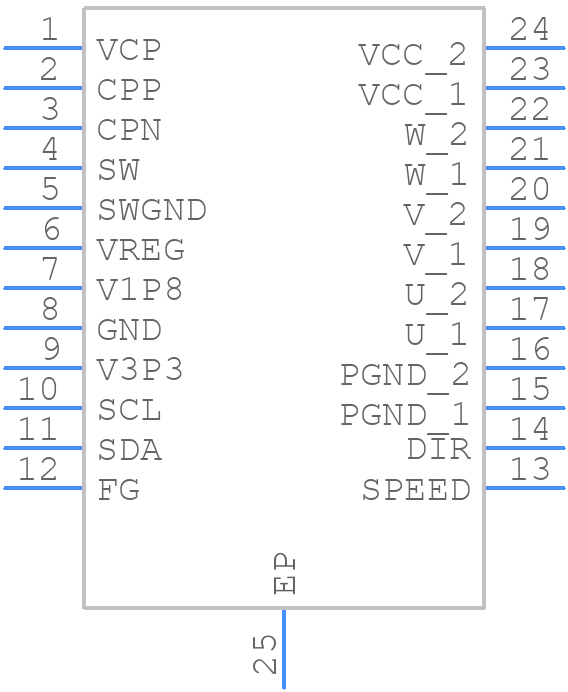

Use the download button to access the DRV10987DPWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV10,
or try a keyword search, such as Motion Control Electronics
