DRV10987SPWPR - Texas Instruments

Description: 50W, 12V to 24V, Three-Phase Sensorless BLDC Motor Driver

Download DRV10987SPWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

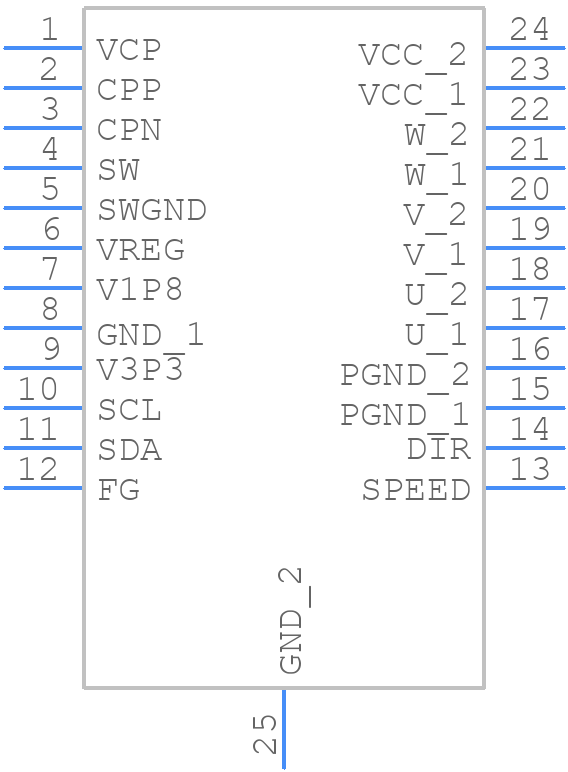

Symbol
DRV10987SPWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV10987SPWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DRV10987SPWPR
click to zoom
3D Models
DRV10987SPWPR - Texas Instruments - 3D model - Small Outline Packages - DRV10987SPWPR
click to zoom

DRV10987SPWPR Details

  • Manufacturer Part Number:

    DRV10987SPWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-11-24

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6.2 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV10987SPWPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the DRV10987SPWPR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the motor. TI provides a recommended PCB layout in the datasheet and application notes.
  • The sense resistor (Rs) should be chosen based on the motor current and the desired current sense accuracy. A smaller Rs value provides better accuracy but increases power loss. TI provides a formula to calculate Rs in the datasheet.
  • The VREG pin is an internal voltage regulator output that can be used to power external circuitry. It is not necessary for the DRV10987SPWPR's operation, but can be useful for powering other components in the system.
  • The DRV10987SPWPR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The device will shut down if the current exceeds the programmed limit.
  • The DRV10987SPWPR can operate up to 100 kHz, but the maximum frequency depends on the specific application and motor characteristics. TI recommends consulting the datasheet and application notes for more information.
