DRV11873PWPR - Texas Instruments

Description: 3-Ph Sensorless BLDC Motor Driver HTSSOP Texas Instruments DRV11873PWPR BLDC Motor Driver IC, 16 V 1.5A, 16-Pin HTSSOP

Download DRV11873PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

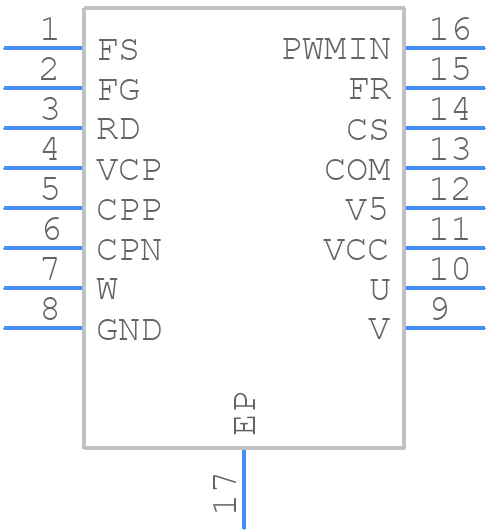

Symbol
DRV11873PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV11873PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP (PWP)+
click to zoom
3D Models
DRV11873PWPR - Texas Instruments - 3D model - Small Outline Packages - HTSSOP (PWP)+
click to zoom

DRV11873PWPR Details

  • Manufacturer Part Number:

    DRV11873PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV11873PWPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the DRV11873PWPR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the motor. TI provides a recommended PCB layout in the application note SLVA883.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A smaller sense resistor value provides better accuracy but increases the power loss. TI recommends using the DRV11873PWPR's internal sense amplifier and selecting a sense resistor value between 0.01 ohms and 0.1 ohms.
  • The DRV11873PWPR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • The DRV11873PWPR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) features. However, it's recommended to add external protection components, such as TVS diodes or zener diodes, to protect the device from voltage transients and spikes.
  • TI recommends using a decoupling capacitor with a value between 1 uF and 10 uF, depending on the application's noise sensitivity and power supply quality. A larger capacitor value can help reduce noise and improve the device's stability.
