Texas Instruments provides a recommended PCB layout in the DRV134UAE4 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The DRV134UAE4 has a flexible gain and filter architecture, and optimizing these settings requires understanding the specific requirements of your application. TI provides application notes and design tools, such as the Audio Filter Wizard, to help engineers optimize the gain and filter settings for their specific use case.
While the datasheet specifies the recommended operating conditions, the maximum input voltage that the DRV134UAE4 can handle is not explicitly stated. According to TI, the device can tolerate up to 10% above the maximum recommended supply voltage (VCC) without damage, but this should not be considered a normal operating condition.
To ensure EMC with the DRV134UAE4, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, TI provides guidelines for EMC compliance in the device's datasheet and application notes.
The DRV134UAE4 has a thermal derating of 1.5°C/W above 25°C, which means that the device's power dissipation must be reduced as the ambient temperature increases to prevent overheating. This is specified in the datasheet, but engineers may need to consult with TI support or application notes for more detailed information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV134UAE4 Overview

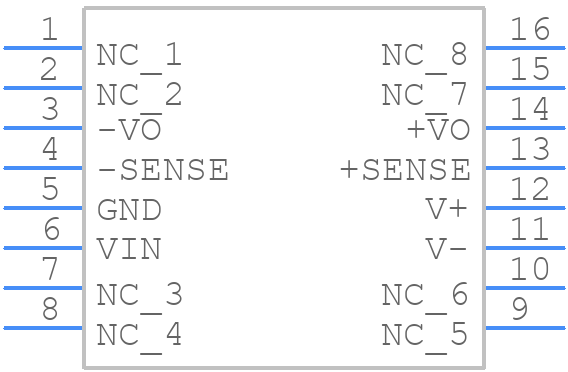

Use the download button to access the DRV134UAE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV13,
or try a keyword search, such as Line Driver or Receivers
