DRV201YMBR - Texas Instruments

Description: 100mA Voice Coil Motor Lens Driver with Ringing Compensation for Camera Autofocus

Download DRV201YMBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

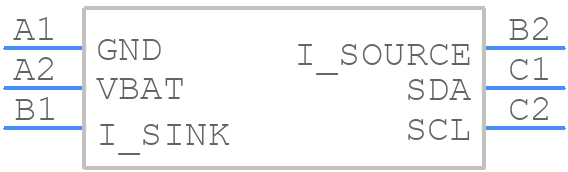

DRV201YMBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV201YMBR - Texas Instruments PCB footprint - BGA - BGA - YMB (R-PSTAR-N6)
click to zoom
3D Models
DRV201YMBR - Texas Instruments - 3D model - BGA - YMB (R-PSTAR-N6)
click to zoom

DRV201YMBR Details

  • Manufacturer Part Number:

    DRV201YMBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    VOICE COIL MOTOR CONTROLLER

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.45 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.24 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    LGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.3 mm

  • Supply Voltage-Max (Vsup):

    4.8 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Copper/Nickel/Palladium (Cu/Ni/Pd)

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.766 mm

DRV201YMBR Frequently Asked Questions (FAQs)

  • The DRV201YMBR can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • The DRV201YMBR requires a single 5V supply (VCC) and a separate 3.3V or 5V supply (VDD) for the logic interface. Ensure that both supplies are properly decoupled and filtered to prevent noise and voltage drops.
  • To minimize noise and EMI, it is recommended to follow a 4-layer PCB stackup with a solid ground plane, and to keep the motor traces as short and wide as possible. Also, ensure that the DRV201YMBR is placed close to the motor and that the motor connections are twisted and shielded.
  • The DRV201YMBR can be configured for different motor types (e.g., stepper, DC, or brushless) by adjusting the mode pins (MODE1 and MODE2) and the current sense resistors (RSENSE). Refer to the datasheet and application notes for specific configuration details.
  • The DRV201YMBR has a maximum current rating of 2A per phase, but the actual current limit depends on the motor type, supply voltage, and PCB thermal design. Ensure that the device is properly heatsinked and that the current is within the recommended operating range.
