SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
DRV2510QPWPRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the DRV2510QPWPRQ1 datasheet, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The choice of inductor depends on the specific application and operating conditions. Texas Instruments provides guidelines for inductor selection in the datasheet, including recommendations for inductance value, current rating, and core material. Engineers should consider factors such as operating frequency, output current, and efficiency requirements when selecting an inductor.
The DRV2510QPWPRQ1 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected by extreme temperatures. Engineers should ensure that the device operates within the recommended temperature range to ensure optimal performance and reliability.
The DRV2510QPWPRQ1 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides guidelines for designing the OCP circuit, including recommended component values and layout considerations.
The DRV2510QPWPRQ1 is rated for a maximum input voltage of 42V. While it can be used in high-voltage applications, engineers should ensure that the device is properly protected from voltage transients and spikes. Additional protection circuits, such as voltage regulators or transient voltage suppressors, may be required to ensure the device's reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV2510QPWPRQ1 Overview

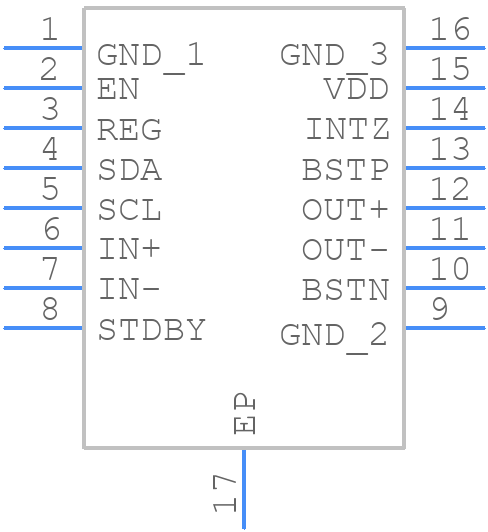

Use the download button to access the DRV2510QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV25,
or try a keyword search, such as Motion Control Electronics
