DRV2603RUNR - Texas Instruments

Description: Haptic Driver with Auto Resonance Tracking for LRA and Optimized Drive for ERM

Download DRV2603RUNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

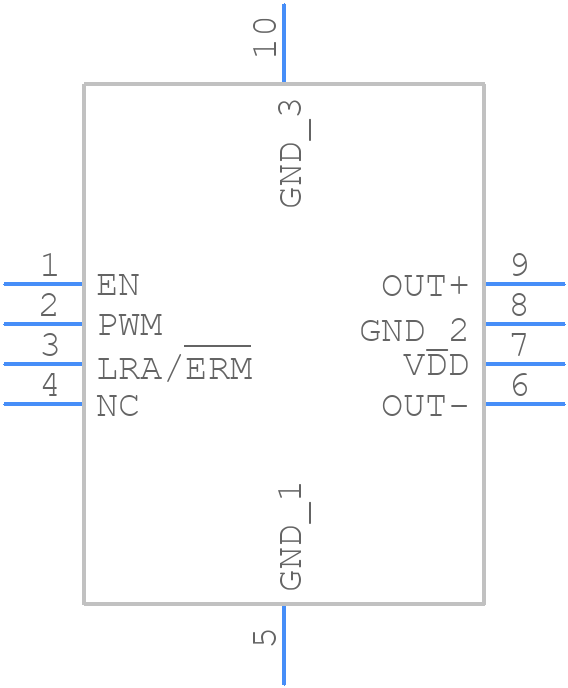

DRV2603RUNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV2603RUNR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUN(S-PWQFN-N10)
click to zoom
3D Models
DRV2603RUNR - Texas Instruments - 3D model - Quad Flat No-Lead - RUN(S-PWQFN-N10)
click to zoom

DRV2603RUNR Details

  • Manufacturer Part Number:

    DRV2603RUNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC10,.08SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.2 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

DRV2603RUNR Frequently Asked Questions (FAQs)

  • The DRV2603RUNR requires careful layout and placement to ensure optimal performance. TI recommends placing the device near the LRA (Linear Resonant Actuator) or ERM (Eccentric Rotating Mass) motor, and using a solid ground plane to reduce EMI. Additionally, keep the input and output traces separate and avoid routing them near each other.
  • When selecting an LRA or ERM motor, consider factors such as the desired vibration amplitude, frequency range, and power consumption. TI provides a motor selection guide and recommends consulting the motor manufacturer's datasheet for specific recommendations.
  • The DRV2603RUNR has a maximum voltage rating of 5.5V and a maximum current rating of 500mA. Exceeding these ratings can damage the device.
  • The DRV2603RUNR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor. This feature helps prevent damage from excessive current draw.
  • Yes, the DRV2603RUNR is suitable for battery-powered devices. However, consider the device's power consumption and battery life when designing your application. TI recommends using a low-dropout regulator (LDO) to regulate the voltage supply.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV2603RUNR Overview

Use the download button to access the DRV2603RUNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV26, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
