The DRV2604LDGSR is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device.
Optimizing the LRA settings requires understanding the resonant frequency of the actuator and the desired vibration pattern. TI provides a tuning guide and software tools to help optimize the LRA settings. Additionally, it is recommended to experiment with different settings and measure the vibration amplitude and frequency to find the optimal configuration.
The maximum voltage that can be applied to the DRV2604LDGSR is 5.5V. Exceeding this voltage can damage the device. It is recommended to use a voltage regulator or a voltage limiter to ensure the voltage remains within the specified range.
To troubleshoot issues with the DRV2604LDGSR, start by checking the power supply voltage, ensuring it is within the specified range. Then, verify the LRA settings and adjust them as needed. Check the device's output waveform using an oscilloscope to ensure it is correct. If issues persist, consult the datasheet and application notes for further guidance.
The DRV2604LDGSR is optimized for use with LRAs, but it can be used with other types of actuators with some modifications. However, the device's performance and efficiency may vary depending on the actuator type. It is recommended to consult the datasheet and application notes for guidance on using the DRV2604LDGSR with different types of actuators.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV2604LDGSR Overview

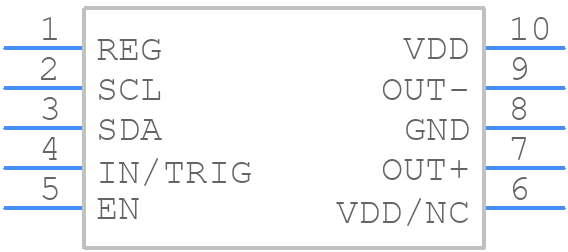

Use the download button to access the DRV2604LDGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV26,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
