DRV2604LYZFR - Texas Instruments

Description: DRV2604L Low Voltage Haptic Driver for ERM and LRA with Internal Memory and Smart Loop Architecture

Download DRV2604LYZFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

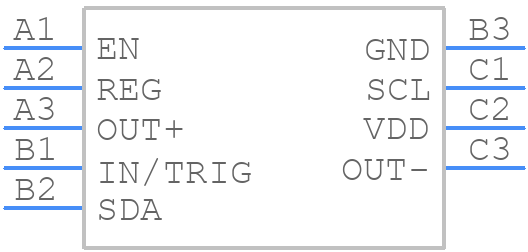

DRV2604LYZFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV2604LYZFR - Texas Instruments PCB footprint - BGA - BGA - YZF (S-XBGA-N9)
click to zoom

DRV2604LYZFR Details

  • Manufacturer Part Number:

    DRV2604LYZFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.44 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    5.2 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.44 mm

DRV2604LYZFR Frequently Asked Questions (FAQs)

  • The DRV2604LYZFR is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet and application notes, including keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device.
  • Optimizing the LRA settings requires understanding the resonant frequency of the actuator and the desired vibration pattern. TI provides a tuning guide and software tools to help optimize the LRA settings. Additionally, it is recommended to experiment with different settings and monitor the device's performance using an oscilloscope or other measurement tools.
  • The maximum voltage that can be applied to the DRV2604LYZFR is 5.5V. Exceeding this voltage can damage the device. It is recommended to use a voltage regulator or other voltage limiting circuitry to ensure the device is operated within its specified voltage range.
  • To ensure the DRV2604LYZFR is properly powered down when not in use, it is recommended to use the EN (enable) pin to control the device's power state. When the EN pin is low, the device is in a low-power state. Additionally, it is recommended to use a power management IC or other power control circuitry to ensure the device is properly powered down when not in use.
  • The recommended operating temperature range for the DRV2604LYZFR is -40°C to 85°C. Operating the device outside of this range can affect its performance and reliability.
