DRV2604YZFR - Texas Instruments

Description: IC ERM/LRA HAPTIC DRIVER 9DSBGA

Download DRV2604YZFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

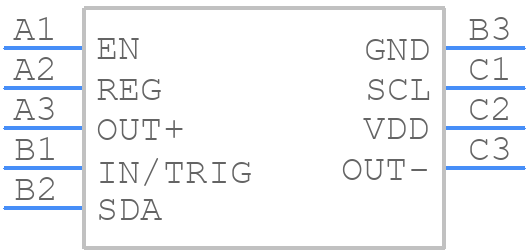

DRV2604YZFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV2604YZFR - Texas Instruments PCB footprint - BGA - BGA - YZF (S-XBGA-N9)
click to zoom
3D Models
DRV2604YZFR - Texas Instruments - 3D model - BGA - YZF (S-XBGA-N9)
click to zoom

DRV2604YZFR Details

  • Manufacturer Part Number:

    DRV2604YZFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    9

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.44 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.44 mm

DRV2604YZFR Frequently Asked Questions (FAQs)

  • The DRV2604YZFR is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the battery, use a solid ground plane, and keep the input and output traces short and separate to minimize noise and EMI.
  • To optimize LRA performance, ensure the LRA is properly matched to the DRV2604YZFR, adjust the resonance frequency to match the LRA's natural frequency, and adjust the drive voltage and current to achieve the desired vibration amplitude.
  • The DRV2604YZFR has a maximum voltage rating of 5.5V and a maximum current rating of 500mA. Exceeding these ratings may damage the device.
  • The DRV2604YZFR has a built-in overcurrent protection feature. To implement it, connect a sense resistor in series with the output, and use the OCP pin to monitor the current. When the current exceeds the threshold, the device will shut down to prevent damage.
  • The Auto-Resonance (AR) feature in the DRV2604YZFR automatically adjusts the drive frequency to match the resonant frequency of the LRA, ensuring optimal vibration amplitude and efficiency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV2604YZFR Overview

Use the download button to access the DRV2604YZFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV26, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
