The DRV2605LDGST is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connecting the device to the motor.
When selecting a motor for use with the DRV2605LDGST, consider the motor's voltage rating, current rating, and inductance. The motor should be rated for the same voltage as the DRV2605LDGST (up to 5.5V) and have a current rating that matches the device's maximum output current (up to 1.5A). The motor's inductance should also be compatible with the device's operating frequency (up to 300 kHz).
The internal oscillator is a clock source that can be used to generate the PWM signal for the motor. To use the internal oscillator, connect the ROSC pin to a capacitor and a resistor in series, and set the OSCEN bit in the Control Register to enable the oscillator. The oscillator frequency can be adjusted by changing the values of the capacitor and resistor.
The DRV2605LDGST has a built-in overcurrent protection feature that can be enabled by setting the OCPEN bit in the Control Register. When an overcurrent condition is detected, the device will shut down and the FAULT pin will be asserted. To implement overcurrent protection, connect a sense resistor in series with the motor and connect the sense resistor to the IS pin. Set the OCP threshold by writing to the OCP register.
The FAULT pin is an open-drain output that is asserted when an overcurrent condition is detected or when the device is in an error state. The FAULT pin can be connected to a microcontroller or other logic device to alert the system to a fault condition. The FAULT pin can also be used to reset the device or take other corrective action.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV2605LDGST Overview

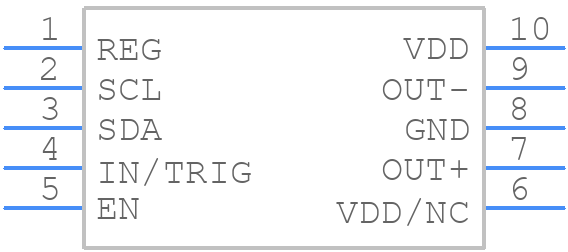

Use the download button to access the DRV2605LDGST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV26,
or try a keyword search, such as Motion Control Electronics
