Part Image

DRV2605LTDGSRQ1 - Texas Instruments

Description: Automotive Haptic Driver for ERM and LRA with Built-In Library and Smart Loop Architecture

Download DRV2605LTDGSRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

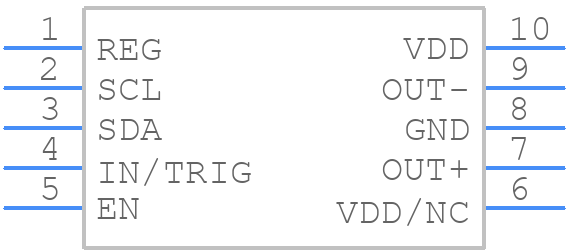

DRV2605LTDGSRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV2605LTDGSRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
DRV2605LTDGSRQ1 - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

DRV2605LTDGSRQ1 Details

  • Manufacturer Part Number:

    DRV2605LTDGSRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.2 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DRV2605LTDGSRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the DRV2605LTDGSRQ1 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the vibration motor. TI provides a recommended PCB layout in the datasheet and application notes.
  • When choosing a vibration motor for use with the DRV2605LTDGSRQ1, consider the motor's resonant frequency, amplitude, and impedance. The motor should be matched to the driver's output impedance and voltage. TI provides guidelines for motor selection in the datasheet and application notes.
  • The maximum voltage that can be applied to the DRV2605LTDGSRQ1 is 5.5V. Exceeding this voltage can damage the device. It's essential to ensure that the power supply voltage is within the recommended range.
  • The DRV2605LTDGSRQ1 has a built-in overcurrent protection feature. However, it's recommended to add external overcurrent protection, such as a fuse or a current-sensing resistor, to prevent damage to the device and the motor in case of a fault condition.
  • The internal oscillator in the DRV2605LTDGSRQ1 generates a clock signal that drives the vibration motor. The oscillator frequency can be adjusted using external resistors and capacitors to optimize the motor's performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV2605LTDGSRQ1 Overview

Use the download button to access the DRV2605LTDGSRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV26, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
