The DRV2605LYZFR is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device.
Optimizing the LRA settings requires experimentation and testing. Start by following the recommended settings in the datasheet, then adjust the frequency, amplitude, and waveform to achieve the desired vibration pattern. Use an oscilloscope to monitor the output and adjust the settings accordingly.
The maximum voltage that can be applied to the DRV2605LYZFR is 5.5V. Exceeding this voltage can damage the device. It is recommended to use a voltage regulator to ensure a stable and regulated voltage supply.
To troubleshoot issues with the DRV2605LYZFR, start by checking the power supply voltage, ensuring it is within the recommended range. Then, verify that the input signals are correct and that the device is properly configured. Use an oscilloscope to monitor the output and check for any signs of malfunction. Consult the datasheet and application notes for further guidance.
The DRV2605LYZFR is optimized for use with LRAs, but it can be used with other types of actuators with some modifications. However, the device's performance and efficiency may vary depending on the actuator type. Consult the datasheet and application notes for guidance on using the DRV2605LYZFR with different types of actuators.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV2605LYZFR Overview

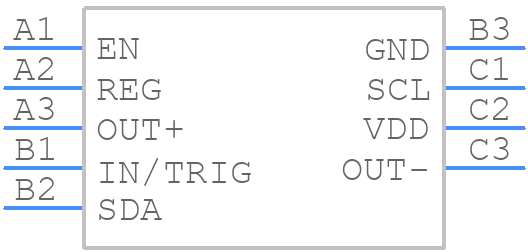

Use the download button to access the DRV2605LYZFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV26,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
