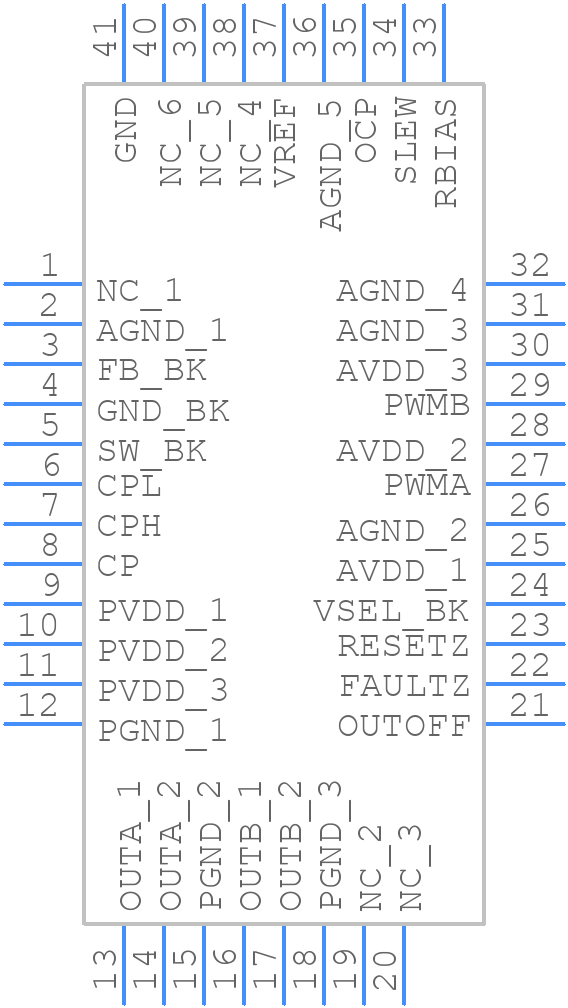

DRV2911QRGFRQ1 - Texas Instruments

DRV2911QRGFRQ1 Details

• Manufacturer Part Number:

  DRV2911QRGFRQ1

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  PIEZO MOTOR CONTROLLER

• JESD-30 Code:

  R-PQCC-N40

• JESD-609 Code:

  e4

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  40

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  8 A

• Output Voltage-Max:

  40 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC40(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Supply Voltage-Max (Vsup):

  35 V

• Supply Voltage-Min (Vsup):

  5 V

• Supply Voltage-Nom (Vsup):

  24 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30
