DRV3204EPHPQ1 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers 3Phase Brushless Motor Dvr

Download DRV3204EPHPQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

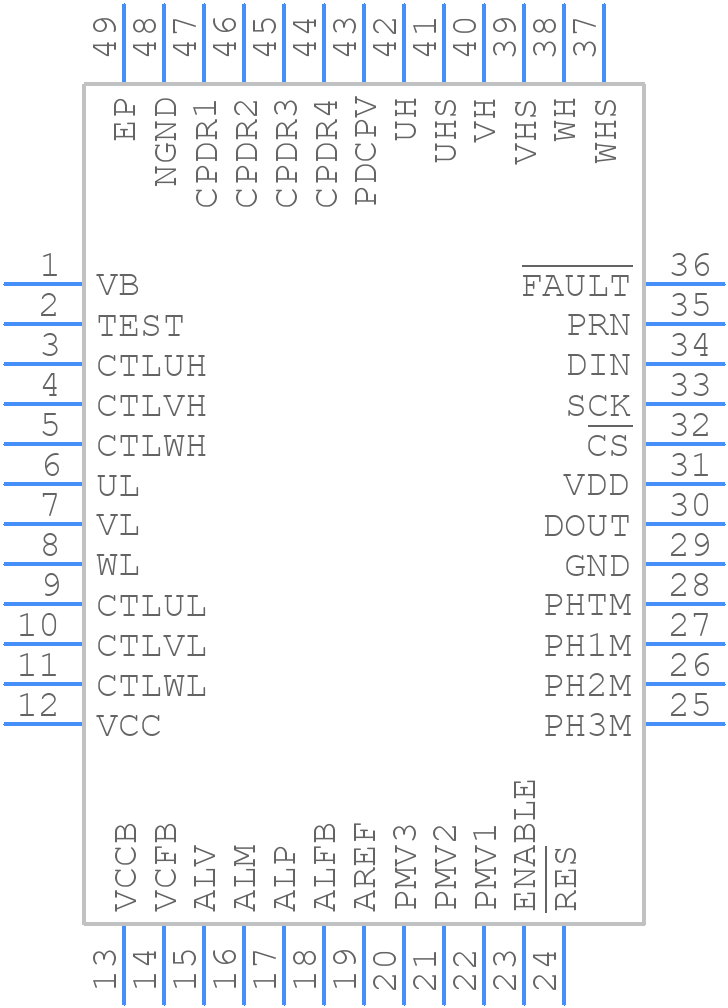

DRV3204EPHPQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV3204EPHPQ1 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP(S-PQFP-G48)(H=1.2mm)-1
click to zoom
3D Models
DRV3204EPHPQ1 - Texas Instruments - 3D model - Quad Flat Packages - PHP(S-PQFP-G48)(H=1.2mm)-1
click to zoom

DRV3204EPHPQ1 Details

  • Manufacturer Part Number:

    DRV3204EPHPQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HTQFP-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES WITH THE RANGE OF 4.5V TO 18V AND 18V TO 26.5V SUPPLY

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    27 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    5.3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DRV3204EPHPQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV3204EPHPQ1 evaluation module documentation, which includes guidelines for component placement, trace routing, and grounding to minimize EMI and noise.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general guideline is to choose a sense resistor value that results in a voltage drop of 50-100 mV at the maximum motor current. TI provides a sense resistor calculator tool to help with the selection.
  • Although the datasheet specifies a recommended operating voltage range of 10-18 V, the absolute maximum rating for the VCC pin is 20 V. However, it's essential to ensure that the voltage regulator or power supply can handle the maximum voltage and current requirements of the device.
  • No, the DRV3204EPHPQ1 is designed for brushed DC motors only. It does not have the necessary commutation logic or phase control for brushless DC motors. TI offers other devices, such as the DRV8301, that are specifically designed for brushless DC motor control.
  • The DRV3204EPHPQ1 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values can be calculated based on the desired overcurrent threshold and the sense resistor value. TI provides an application note with detailed guidelines for implementing overcurrent protection.
