DRV411AIRGPR - Texas Instruments

Description: Sensor and Detector Interface 5.5V 20-Pin VQFN EP T/R

Download DRV411AIRGPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

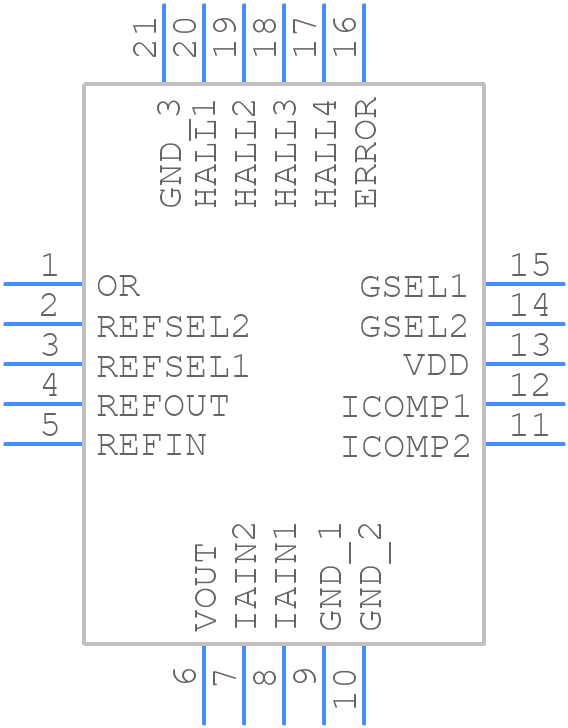

DRV411AIRGPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV411AIRGPR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGP0020D
click to zoom
3D Models
DRV411AIRGPR - Texas Instruments - 3D model - Quad Flat No-Lead - RGP0020D
click to zoom

DRV411AIRGPR Details

  • Manufacturer Part Number:

    DRV411AIRGPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO OPERATES AT 5 V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV411AIRGPR Frequently Asked Questions (FAQs)

  • The DRV411AIRGPR can operate from -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general guideline is to choose Rs such that the voltage across it is between 50 mV to 500 mV at the maximum motor current.
  • The internal voltage regulator generates a 5V supply voltage for the internal logic and gate drive circuits, allowing the device to operate from a single supply voltage.
  • Yes, the DRV411AIRGPR can be used to drive a stepper motor. However, it's essential to ensure that the motor's current and voltage requirements are within the device's specifications.
  • The DRV411AIRGPR has a built-in overcurrent protection feature. You can set the overcurrent threshold by adjusting the sense resistor value and the OCx pins. When an overcurrent condition is detected, the device will shut down and latch off until the fault is cleared.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV411AIRGPR Overview

Use the download button to access the DRV411AIRGPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV41, or try a keyword search, such as Other Signal Circuits
