DRV411AIRGPT - Texas Instruments

Description: Hall-Effect Magnetic Sensor Signal Conditioning IC for Closed-Loop Applications

Download DRV411AIRGPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

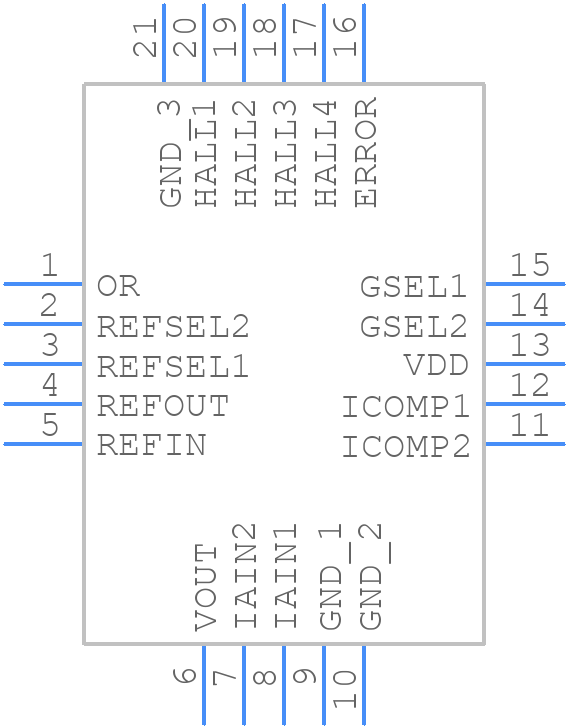

DRV411AIRGPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV411AIRGPT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGP (S-PVQFN-N20)-2
click to zoom
3D Models
DRV411AIRGPT - Texas Instruments - 3D model - Quad Flat No-Lead - RGP (S-PVQFN-N20)-2
click to zoom

DRV411AIRGPT Details

  • Manufacturer Part Number:

    DRV411AIRGPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO OPERATES AT 5 V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV411AIRGPT Frequently Asked Questions (FAQs)

  • The DRV411AIRGPT can operate from -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • Follow the recommended PCB layout guidelines in the datasheet, keeping the high-current paths short and away from sensitive analog signals. Use a solid ground plane, and consider using a 4-layer PCB with a dedicated power plane.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor (CIN). This helps to filter the input voltage and reduce noise.
  • The DRV411AIRGPT is a general-purpose motor driver, and the configuration depends on the specific motor type. Refer to the datasheet and application notes for guidance on setting the correct mode, current limits, and dead-time settings for your specific motor type.
  • The DRV411AIRGPT has a maximum current rating of 1.5A per phase. Calculate the current limit by considering the motor's current requirements, the driver's current sense resistor (RSENSE), and the overcurrent protection (OCP) threshold.
