The DRV5825PRHBR can handle a maximum current of 2.5A per channel, with a total current limit of 5A for both channels combined.
The DRV5825PRHBR can be configured for half-bridge or full-bridge operation by setting the BRIDGE pin high or low, respectively. For half-bridge operation, tie the BRIDGE pin to VCC, and for full-bridge operation, tie it to GND.
The DEADTIME pin sets the dead time between the high-side and low-side FETs in a half-bridge configuration. A shorter dead time can reduce power losses, but may also increase the risk of shoot-through. A longer dead time can reduce the risk of shoot-through, but may also increase power losses. The optimal dead time value depends on the specific application and should be determined through experimentation and testing.
The DRV5825PRHBR has built-in overcurrent protection (OCP) and overvoltage protection (OVP) features. The OCP threshold can be set using an external resistor, and the OVP threshold is fixed at 35V. Additionally, it's recommended to use external protection components such as fuses, TVS diodes, and capacitors to further protect the device and the system from overvoltage and overcurrent conditions.
The DRV5825PRHBR is a high-power device and requires careful layout and thermal management to ensure reliable operation. It's recommended to use a 4-layer PCB with a solid ground plane, and to place the device on a thermal pad with a heat sink. The device should also be placed away from other heat sources, and the PCB should be designed to minimize thermal resistance and maximize heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV5825PRHBR Overview

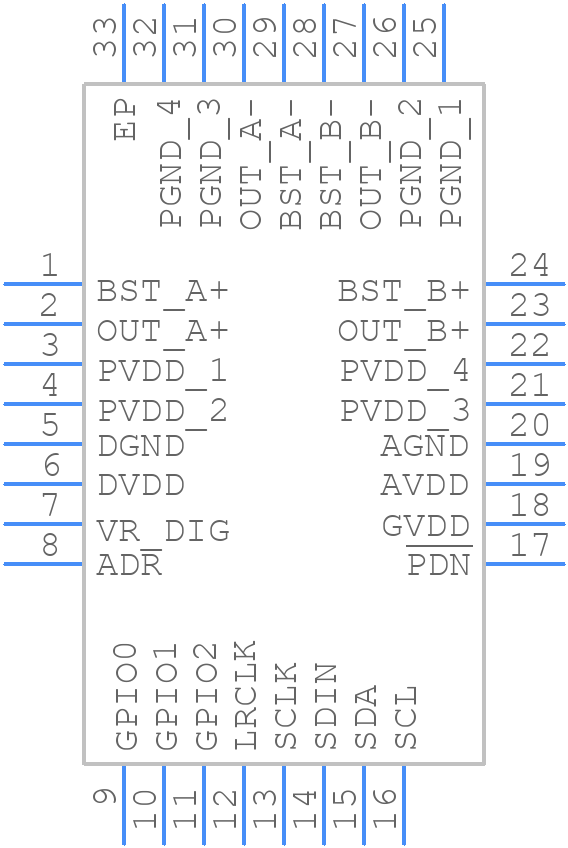

Use the download button to access the DRV5825PRHBR schematic symbol, PCB footprint, and 3D model.
