- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DRV8210DSGR
- Part Number DRV8210DSGR
- Manufacturer Texas Instruments
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - WSON - 0.8 mm_2021
- Released Date Mar 3, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DRV8210DSGR Details
-
Manufacturer Part Number:
DRV8210DSGR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Analog IC - Other Type:
HALF BRIDGE BRUSH DC MOTOR CONTROLLER
-
JESD-30 Code:
S-PDSO-N8
DRV8210DSGR Frequently Asked Questions (FAQs)
-
The maximum current rating of the DRV8210DSGR is 1.5A per channel, with a peak current of 3A.
-
The DRV8210DSGR can be configured for half-bridge or full-bridge operation by connecting the appropriate pins and setting the MODE pin accordingly. Refer to the application note SLVA883 for more details.
-
The minimum input voltage required for the DRV8210DSGR is 8V, but it is recommended to use a minimum of 10V for proper operation.
-
The DRV8210DSGR has built-in overcurrent protection and thermal shutdown. Additionally, external protection circuits can be added to prevent overcurrent and overheating. Refer to the application note SLVA884 for more details.
-
Yes, the DRV8210DSGR can be used for brushless DC motor control. It has a built-in three-phase bridge driver and can be used with external controllers or microcontrollers to control the motor.
Trust Checks
Community Provided
System Verified
Community Approved
DRV8210DSGR Overview

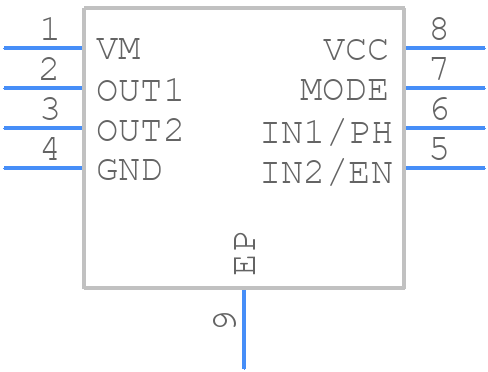

Use the download button to access the DRV8210DSGR schematic symbol, PCB footprint, and 3D model.
