DRV8213DSGR - Texas Instruments

Description: Motor Drives 11-V 4-A brushed DC motor driver with intergrated current sense, current regulation and stall detect 8-WSON -40 to 125

Download DRV8213DSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

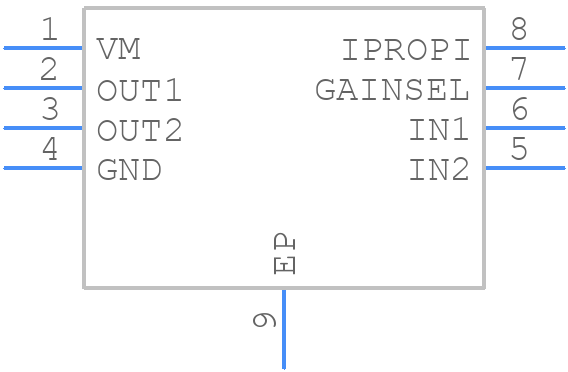

DRV8213DSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8213DSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A_2023
click to zoom
3D Models
DRV8213DSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A_2023
click to zoom

DRV8213DSGR Details

  • Manufacturer Part Number:

    DRV8213DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.9 mA

  • Supply Voltage-Max (Vsup):

    11 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

DRV8213DSGR Frequently Asked Questions (FAQs)

  • The maximum voltage rating for the DRV8213DSGR is 40V, but it's recommended to operate within the specified voltage range of 8V to 38V for optimal performance and reliability.
  • The DRV8213DSGR is a versatile driver that can be configured for different motor types (e.g., brushed DC, stepper, or brushless) using the MODE pin and the SPI interface. Refer to the application notes and user guides for specific configuration examples and guidelines.
  • The internal voltage regulator (VREG) in the DRV8213DSGR generates a 5V supply voltage for the internal logic and can also be used to power external components. However, it's recommended to use an external voltage regulator for powering external components to ensure reliable operation.
  • The DRV8213DSGR has a built-in overcurrent protection feature that can be enabled using the OCP pin. The OCP threshold can be set using an external resistor (R_OCP) connected to the OCP pin. Refer to the datasheet and application notes for more information on implementing overcurrent protection.
  • The maximum current rating for the DRV8213DSGR is 3A per phase, but it's recommended to operate within the specified current range of 1A to 2A per phase for optimal performance and reliability.
