The maximum current rating of the DRV8214RTER is 4A per phase, but it can be limited by the PCB design, thermal considerations, and other system-level factors. It's essential to carefully evaluate the system's thermal and electrical requirements to ensure reliable operation.
The sense resistor value depends on the desired current sense accuracy, the maximum current rating, and the voltage supply. A general guideline is to choose a sense resistor value that provides a voltage drop of around 50-100mV at the maximum current rating. TI provides a sense resistor calculator tool to help with the selection process.
The EN (enable) pin is used to enable or disable the driver. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. This pin can be used to implement a shutdown or sleep mode in the system. It's essential to ensure that the EN pin is properly driven and decoupled to prevent unwanted oscillations or noise.
The DRV8214RTER is a general-purpose motor driver, and its configuration depends on the specific motor type and application requirements. TI provides application notes and design guides for different motor types, which include configuration guidelines, schematics, and PCB layout recommendations.
Proper PCB layout and thermal design are crucial for reliable operation and to prevent overheating. Key considerations include keeping the high-current paths short and wide, using thermal vias, and providing adequate heat sinking. TI provides PCB layout guidelines and thermal design recommendations in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8214RTER Overview

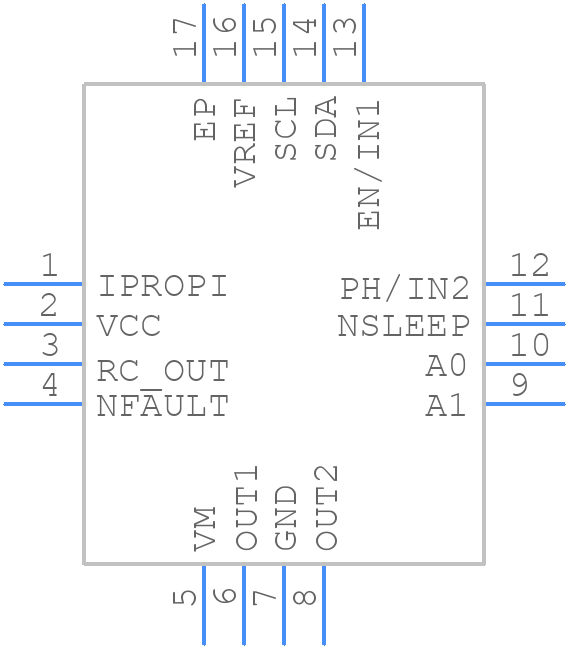

Use the download button to access the DRV8214RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV82,
or try a keyword search, such as Motion Control Electronics
