- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DRV8220DSGR
- Part Number DRV8220DSGR
- Manufacturer Texas Instruments
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - DSG
- Released Date Sep 13, 2021
- Last Modified Date Jan 6, 2024 6:27 AM UTC
- Pinout / Pin List Click Here (Member Only)
DRV8220DSGR Details
-
Manufacturer Part Number:
DRV8220DSGR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Analog IC - Other Type:
HALF BRIDGE BRUSH DC MOTOR CONTROLLER
-
JESD-30 Code:
S-PDSO-N8
DRV8220DSGR Frequently Asked Questions (FAQs)
-
The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
-
The sense resistor value depends on the desired current limit and the voltage drop across the sense resistor. A good starting point is to use the formula Rsense = 0.5V / I_limit, where I_limit is the desired current limit.
-
The EN pin is an active-high enable input that allows the device to be enabled or disabled. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement a shutdown feature or to reduce power consumption when the device is not in use.
-
The DRV8220 has a built-in overcurrent protection feature that limits the output current to a safe value. However, it's still important to add external protection components, such as fuses or PTC thermistors, to protect the device and the system from overcurrent conditions.
-
The DRV8220 can operate up to 100 kHz, but the maximum operating frequency depends on the specific application and the values of the external components. It's recommended to consult the datasheet and application notes for more information.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
DRV8220DSGR Overview

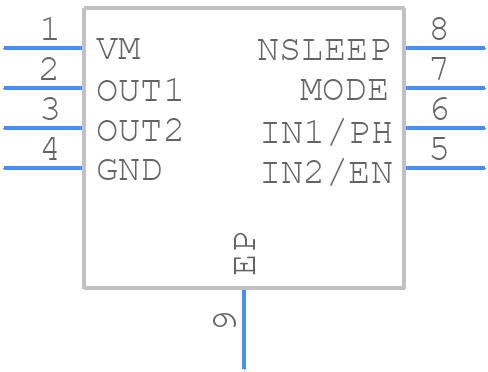

Use the download button to access the DRV8220DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV82,
or try a keyword search, such as Motion Control Electronics
