The maximum operating temperature range for the DRV8242SQRHLRQ1 is -40°C to 150°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
To minimize EMI and noise, it's crucial to follow proper PCB layout guidelines. Keep the high-current paths short and away from sensitive analog signals. Use a solid ground plane, and consider using a 4-layer PCB with a dedicated power plane. Additionally, place decoupling capacitors close to the device's power pins and use a common-mode choke or ferrite bead to filter the input voltage.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended due to its low equivalent series resistance (ESR) and high ripple current capability.
The output current limit of the DRV8242SQRHLRQ1 can be adjusted by connecting a resistor (RILIM) between the ILIM pin and the GND pin. The current limit is calculated using the formula: I_LIM = 1.5V / RILIM. For example, a 1kΩ resistor would set the current limit to approximately 1.5A.
The EN (enable) pin is used to enable or disable the device. When the EN pin is high (logic level 1), the device is enabled, and when it's low (logic level 0), the device is disabled. You can use the EN pin to implement a shutdown or standby mode in your application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8242SQRHLRQ1 Overview

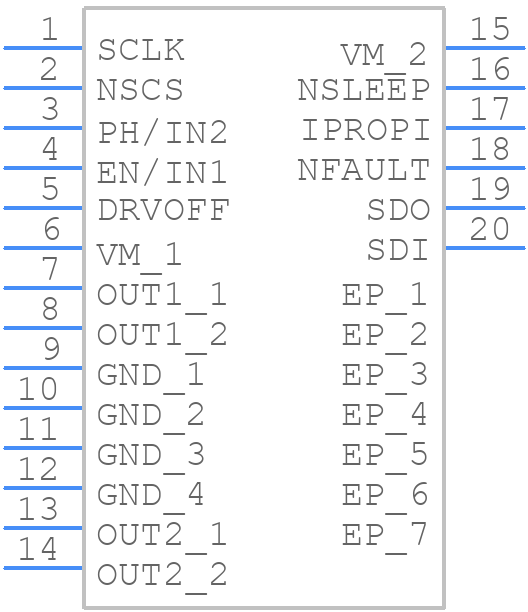

Use the download button to access the DRV8242SQRHLRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV82,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
