SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Supply Voltage-Max (Vsup):
35 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
13.5 V
Surface Mount:
YES
Technology:
BICMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Position:
DUAL
Width:
4.9 mm
DRV8243HQDGQRQ1 Frequently Asked Questions (FAQs)
The maximum operating temperature range for the DRV8243HQDGQRQ1 is -40°C to 150°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
To minimize EMI and noise, it's crucial to follow proper PCB layout guidelines. Keep the high-current paths short and away from sensitive analog signals. Use a solid ground plane, and consider using a 4-layer PCB with a dedicated power plane. Additionally, place decoupling capacitors close to the device's power pins and use a common mode choke or ferrite bead to filter the input voltage.
The recommended input capacitor value is 10uF to 22uF, with an X7R or X5R dielectric type. This capacitor helps to filter the input voltage and reduce ripple. However, the exact value and type may vary depending on the specific application and input voltage characteristics.
To configure the DRV8243HQDGQRQ1 for a specific motor type and application, you'll need to consider factors such as the motor's winding resistance, inductance, and back-EMF. You may need to adjust the device's current sense resistors, gate drive resistors, and dead-time settings. Consult the datasheet and application notes for guidance, and consider using TI's Motor Driver Calculator tool to help with the configuration process.
The DRV8243HQDGQRQ1 is a high-current, high-voltage motor driver IC with advanced features such as current sensing, overcurrent protection, and thermal monitoring. Compared to other similar ICs, it offers higher current capability, faster switching speeds, and more advanced protection features. However, the specific differences will depend on the specific comparison IC, so it's essential to review the datasheets and application notes for each device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8243HQDGQRQ1 Overview

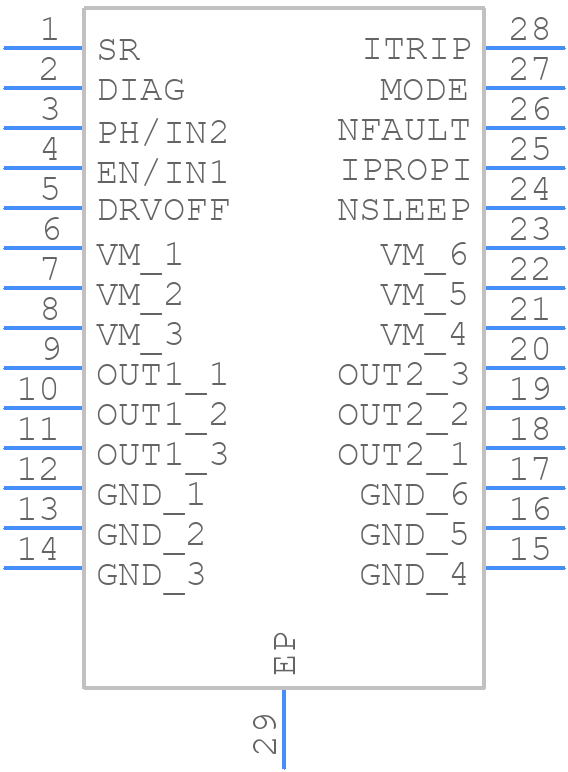

Use the download button to access the DRV8243HQDGQRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV82,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
