DRV8243PQDGQRQ1 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Automotive 40-V, 12-A H-bridge driver with integrated current sensing and feedback

Download DRV8243PQDGQRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

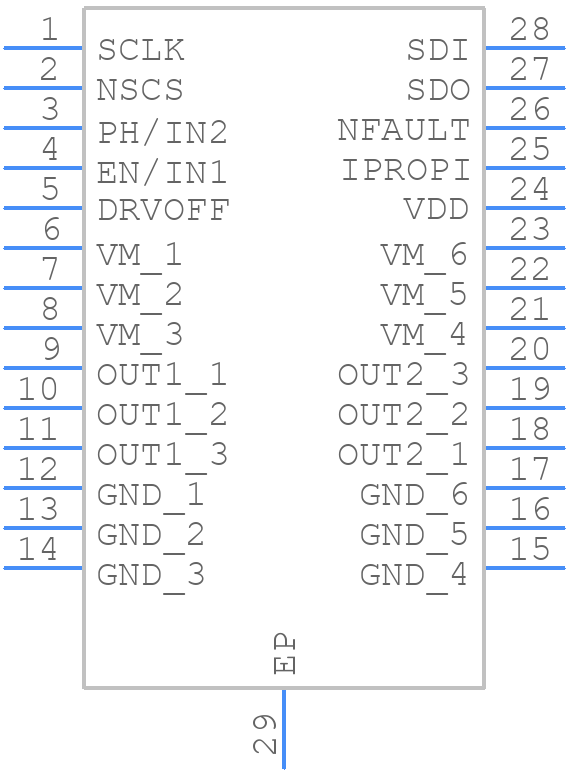

DRV8243PQDGQRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8243PQDGQRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ0028A
click to zoom
3D Models
DRV8243PQDGQRQ1 - Texas Instruments - 3D model - Small Outline Packages - DGQ0028A
click to zoom

DRV8243PQDGQRQ1 Details

  • Manufacturer Part Number:

    DRV8243PQDGQRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    12 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

DRV8243PQDGQRQ1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the DRV8243PQDGQRQ1 is -40°C to 125°C.
  • TI recommends following the layout guidelines in the DRV8243 application note (SLVAUH7) and using a 4-layer PCB with a solid ground plane, separating the high-current and low-current paths, and keeping the decoupling capacitors close to the device.
  • TI recommends using a 10uF to 22uF X5R or X7R ceramic capacitor with a voltage rating of 25V or higher, placed as close as possible to the VIN pin.
  • The DRV8243PQDGQRQ1 is a general-purpose motor driver and can be configured for different motor types by adjusting the input pins (e.g., STEP/DIR for stepper motors, PWM for DC motors, and PHASE/ENABLE for brushless motors) and using the appropriate external components (e.g., resistors, capacitors, and inductors).
  • The maximum current rating for the DRV8243PQDGQRQ1 is 3.5A per channel (peak), with a maximum continuous current rating of 2.5A per channel.
