DRV8243SQRXYRQ1 - Texas Instruments

Description: Automotive 40-V, 12-A H-bridge driver with integrated current sensing and feedback

Download DRV8243SQRXYRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

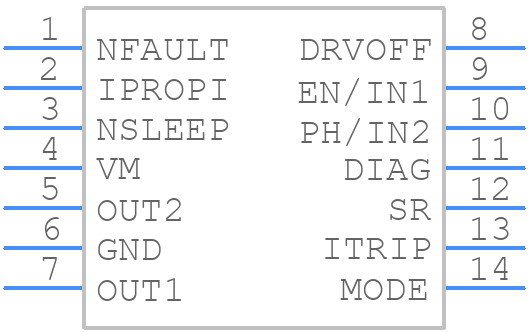

Symbol
DRV8243SQRXYRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8243SQRXYRQ1 - Texas Instruments PCB footprint - Other - Other - DRV8243SQRXYRQ1-3
click to zoom
3D Models
DRV8243SQRXYRQ1 - Texas Instruments - 3D model - Other - DRV8243SQRXYRQ1-3
click to zoom

DRV8243SQRXYRQ1 Details

  • Manufacturer Part Number:

    DRV8243SQRXYRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    12 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC14,.12X.18(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DRV8243SQRXYRQ1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the DRV8243SQRXYRQ1 is -40°C to 125°C.
  • The DRV8243SQRXYRQ1 is a general-purpose motor driver, and configuration depends on the specific motor type. Refer to the application notes and design guides provided by Texas Instruments for guidance on configuring the driver for your specific motor type.
  • Texas Instruments provides a recommended PCB layout and thermal management guide in the datasheet and application notes. It's essential to follow these guidelines to ensure proper heat dissipation and minimize electromagnetic interference (EMI).
  • The DRV8243SQRXYRQ1 has built-in overcurrent protection (OCP) and overvoltage protection (OVP). However, it's still recommended to add external protection components, such as fuses and TVS diodes, to ensure robust protection against overcurrent and overvoltage conditions.
  • The minimum input voltage range for the DRV8243SQRXYRQ1 is 4.5V, and the maximum input voltage range is 36V.
