DRV8244SQDGQRQ1 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Automotive 40-V, 21-A H-Bridge driver with integrated current sensing and feedback 28-HVSSOP -40 to 125

Download DRV8244SQDGQRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

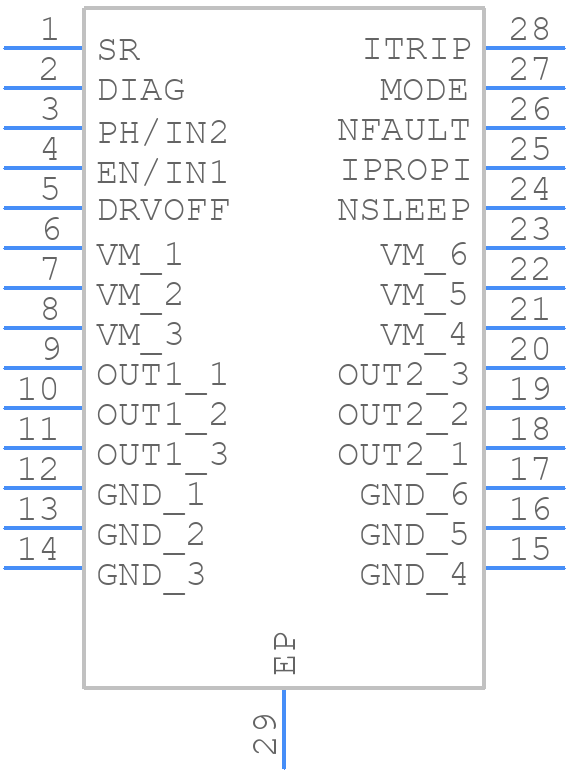

Symbol
DRV8244SQDGQRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8244SQDGQRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ0028A
click to zoom
3D Models
DRV8244SQDGQRQ1 - Texas Instruments - 3D model - Small Outline Packages - DGQ0028A
click to zoom

DRV8244SQDGQRQ1 Details

  • Manufacturer Part Number:

    DRV8244SQDGQRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    7.1 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    21 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSOP

  • Package Equivalence Code:

    TSSOP28,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DRV8244SQDGQRQ1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the DRV8244SQDGQRQ1 is -40°C to 125°C.
  • The input pins (IN1 and IN2) should be connected to a microcontroller or other control signal source, while the output pins (OUT1 and OUT2) should be connected to the motor windings. Ensure proper pin orientation and voltage levels to avoid damage.
  • A 10uF to 22uF ceramic capacitor should be placed as close as possible to the VCC pin, with a maximum distance of 1 cm. This helps to filter out noise and ensure stable operation.
  • The DRV8244SQDGQRQ1 has built-in overcurrent protection and fault detection. Monitor the nFAULT pin for fault signals, and use the OCP (Overcurrent Protection) pin to set the overcurrent threshold. Implement a suitable fault handling mechanism in your system design.
  • Follow Texas Instruments' recommended PCB layout guidelines, including keeping the device away from heat sources, using thermal vias, and ensuring good airflow. A 2-layer or 4-layer PCB is recommended, with a solid ground plane and proper power plane decoupling.
