DRV8256PRGER - Texas Instruments

Description: H-Bridge Motor Driver 24-Pin VQFN EP T/R

Download DRV8256PRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

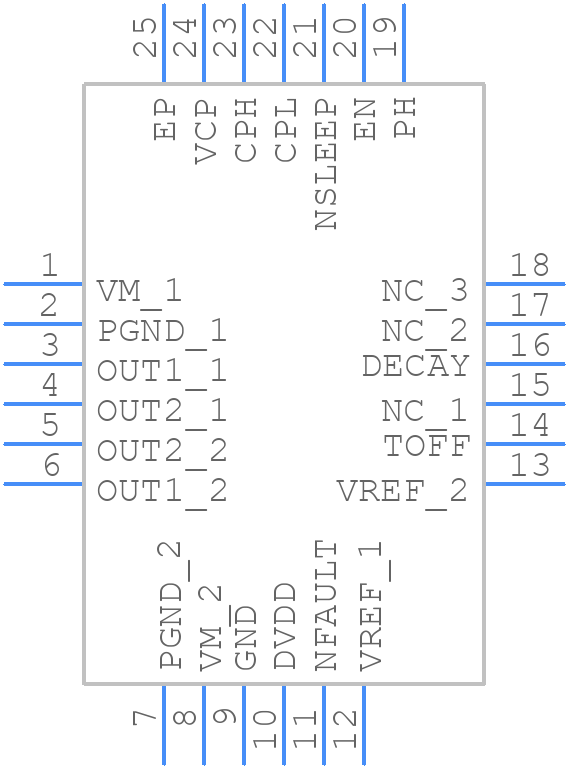

DRV8256PRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8256PRGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
DRV8256PRGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

DRV8256PRGER Details

  • Manufacturer Part Number:

    DRV8256PRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    5.5 mA

  • Supply Voltage-Max (Vsup):

    48 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV8256PRGER Frequently Asked Questions (FAQs)

  • The maximum voltage rating for the DRV8256PRGER is 50V, but it's recommended to operate within the specified voltage range of 8V to 42V for optimal performance and reliability.
  • The DRV8256PRGER can be configured for half-bridge or three-phase motor control by properly setting the input pins (IN1, IN2, and EN) and using external components such as resistors and capacitors to set the dead-time and blanking time. Refer to the application notes and evaluation modules for more information.
  • The minimum input pulse width required for the DRV8256PRGER is 100ns, but it's recommended to use a pulse width of at least 200ns to ensure reliable operation.
  • The DRV8256PRGER has built-in overcurrent protection (OCP) and overvoltage protection (OVP), but it's recommended to add external protection components such as fuses, TVS diodes, and resistors to ensure robust protection against overcurrent and overvoltage conditions.
  • The DRV8256PRGER supports switching frequencies up to 100kHz, but the actual frequency limit depends on the specific application, motor type, and system requirements.
