DRV8262QDDWRQ1 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Automotive 70-V 20A single or dual H-br

Download DRV8262QDDWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

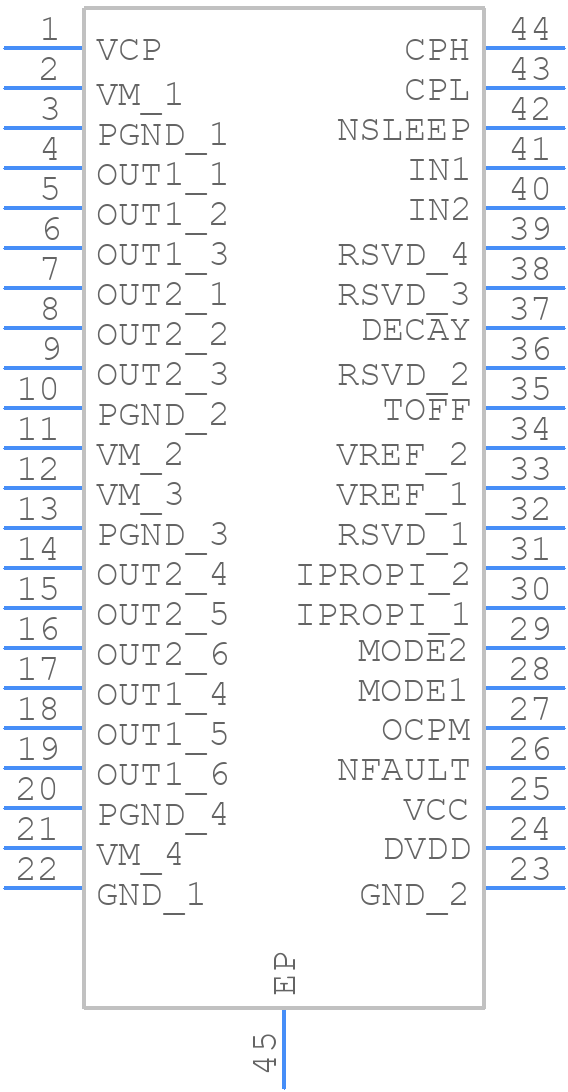

Symbol
DRV8262QDDWRQ1 - Texas Instruments - PCB symbol
click to zoom

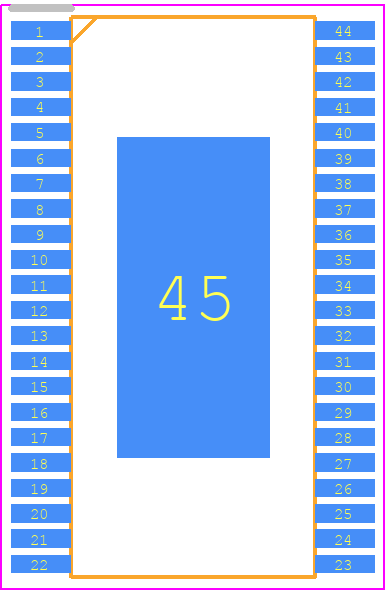

PCB Footprints
DRV8262QDDWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDW0044E
click to zoom
3D Models
DRV8262QDDWRQ1 - Texas Instruments - 3D model - Small Outline Packages - DDW0044E
click to zoom

DRV8262QDDWRQ1 Details

  • Manufacturer Part Number:

    DRV8262QDDWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO CAN DRIVE STEPPER MOTORS

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP44,.32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    13 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

DRV8262QDDWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV8262QDDWRQ1 evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal pad connections to minimize EMI and thermal issues.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. Texas Instruments provides a sense resistor calculation tool and guidelines in the DRV8262QDDWRQ1 datasheet and application notes to help select the correct value.
  • The maximum allowed voltage on the VM pin is 50V. To protect it from overvoltage, a voltage clamp or a zener diode can be used to limit the voltage to a safe level. Additionally, a voltage divider can be used to reduce the voltage to a level within the recommended range.
  • The DRV8262QDDWRQ1 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides guidelines for selecting the correct values for the resistor and capacitor to set the desired overcurrent threshold.
  • The recommended decoupling capacitor value is 10uF to 22uF, and it should be placed as close as possible to the DRV8262QDDWRQ1 device, preferably on the same side of the PCB as the device. This helps to reduce noise and improve the device's stability.
