Texas Instruments provides a recommended PCB layout in the DRV8300DPWRQ1 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The gate driver voltage should be selected based on the voltage rating of the power MOSFETs or IGBTs used in the motor driver stage. Typically, a gate driver voltage of 10-15V is suitable for most motor applications. However, it's essential to consult the datasheet of the power devices and the motor driver requirements to determine the optimal gate driver voltage.
The maximum allowed dead-time between the high-side and low-side FETs depends on the specific application and motor requirements. As a general guideline, a dead-time of 100-200 ns is typical for most motor applications. However, it's essential to consult the motor driver requirements and ensure that the dead-time is sufficient to prevent shoot-through currents and minimize losses.
The DRV8300DPWRQ1 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be set by selecting the appropriate resistor value. Additionally, the device also has a fault output pin that can be used to trigger an interrupt or shutdown the system in case of an overcurrent event.
The DRV8300DPWRQ1 is rated for operation from -40°C to 125°C. However, it's essential to ensure that the device is operated within the recommended temperature range to maintain its performance, reliability, and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8300DPWRQ1 Overview

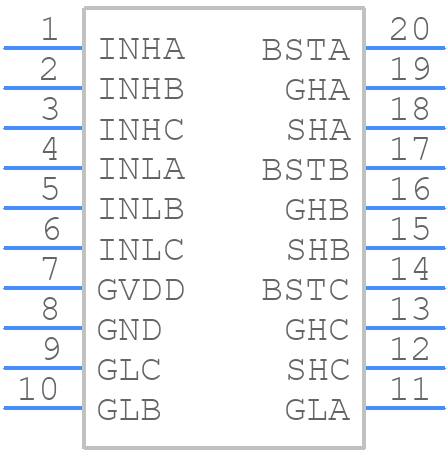

Use the download button to access the DRV8300DPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83,
or try a keyword search, such as MOSFET Drivers
