Texas Instruments provides a recommended PCB layout in the DRV8300NIPWR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of current sense resistors depends on the motor current, desired current sense accuracy, and PCB layout. TI recommends using a sense resistor with a low tolerance (e.g., 1%) and a power rating that can handle the maximum expected current. A higher sense resistor value can provide better accuracy but may increase noise sensitivity.
The VREG_3V3 pin is an internal 3.3V regulator output that can be used to power external components, such as sensors or microcontrollers. It is recommended to use a capacitor (e.g., 10uF) to filter the output voltage and ensure stability.
The DRV8300NIPWR is a general-purpose motor driver that can be configured for different motor types using external components and programming. For example, BLDC motors require a 3-phase configuration, while stepper motors require a 2-phase configuration. TI provides application notes and code examples for different motor types.
The DRV8300NIPWR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It is essential to ensure proper thermal management, such as heat sinking and airflow, to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8300NIPWR Overview

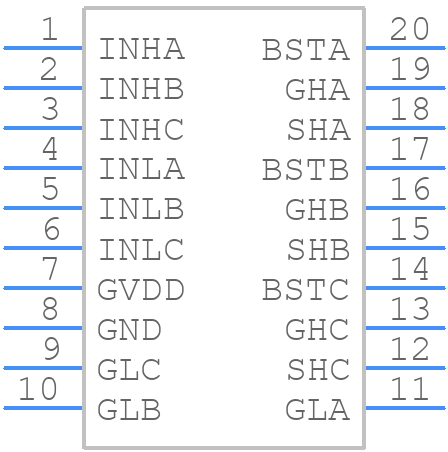

Use the download button to access the DRV8300NIPWR schematic symbol, PCB footprint, and 3D model.
