TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
High Side Driver:
YES
Input Characteristics:
DIFFERENTIAL
Interface IC Type:
HALF BRIDGE BASED MOSFET DRIVER
JESD-30 Code:
S-PQFP-G48
JESD-609 Code:
e4
Length:
7 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
48
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
PUSH-PULL
Output Current Flow Direction:
SOURCE AND SINK
Output Peak Current Limit-Nom:
1 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTFQFP
Package Equivalence Code:
TQFP48,.35SQ
Package Shape:
SQUARE
Package Style:
FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
45 V
Supply Voltage-Min:
4.4 V
Supply Voltage-Nom:
12 V
Supply Voltage1-Max:
45 V
Supply Voltage1-Min:
4.4 V
Supply Voltage1-Nom:
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.2 µs
Turn-on Time:
0.2 µs
Width:
7 mm
DRV83053PHP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the DRV83053PHP evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
The DRV83053PHP is designed to work with a wide range of MOSFETs. To select the right MOSFETs, consider factors such as voltage rating, current rating, RDS(on), and gate charge. Texas Instruments provides a MOSFET selection guide in the DRV83053PHP datasheet and application notes.
The DRV83053PHP can operate up to 100 kHz, but the maximum operating frequency depends on the specific application, MOSFET selection, and PCB layout. It's recommended to consult the datasheet and application notes for more information on frequency limitations.
The DRV83053PHP has a built-in overcurrent protection feature that can be enabled through the OCx pins. The device can detect overcurrent conditions and respond by shutting down the driver or triggering an interrupt. Consult the datasheet and application notes for more information on implementing overcurrent protection.
The VREG pin is an internal voltage regulator output that can be used to power external components, such as sensors or microcontrollers. The VREG pin is regulated to 5V or 3.3V, depending on the device configuration. Consult the datasheet for more information on using the VREG pin.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV83053PHP Overview

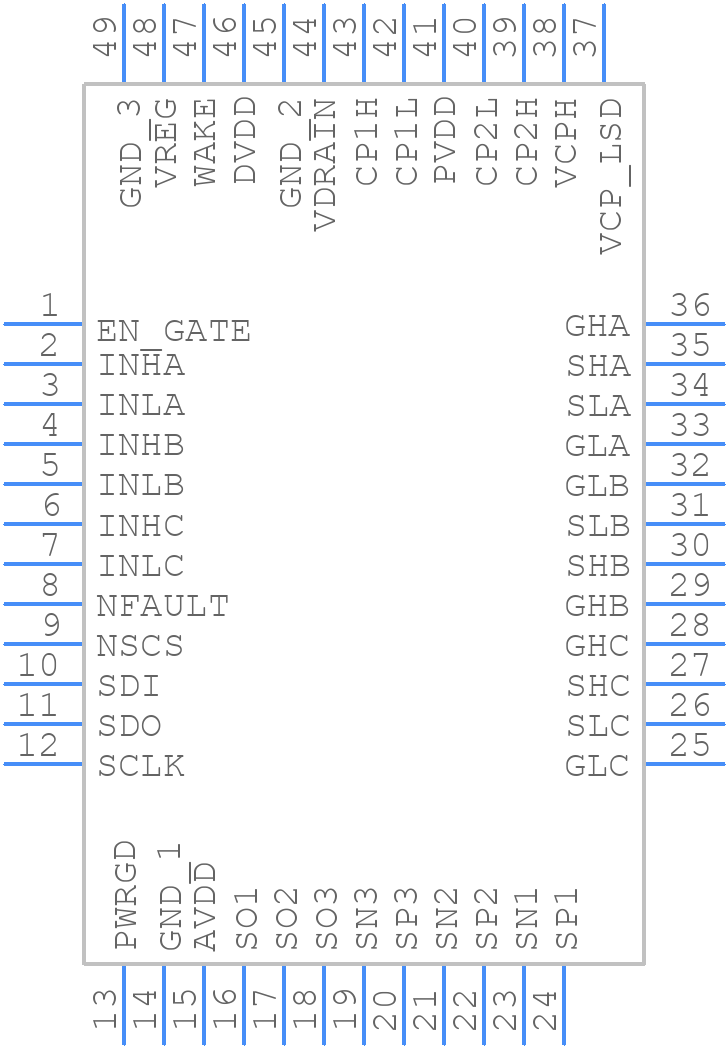

Use the download button to access the DRV83053PHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV83,
or try a keyword search, such as MOSFET Drivers
